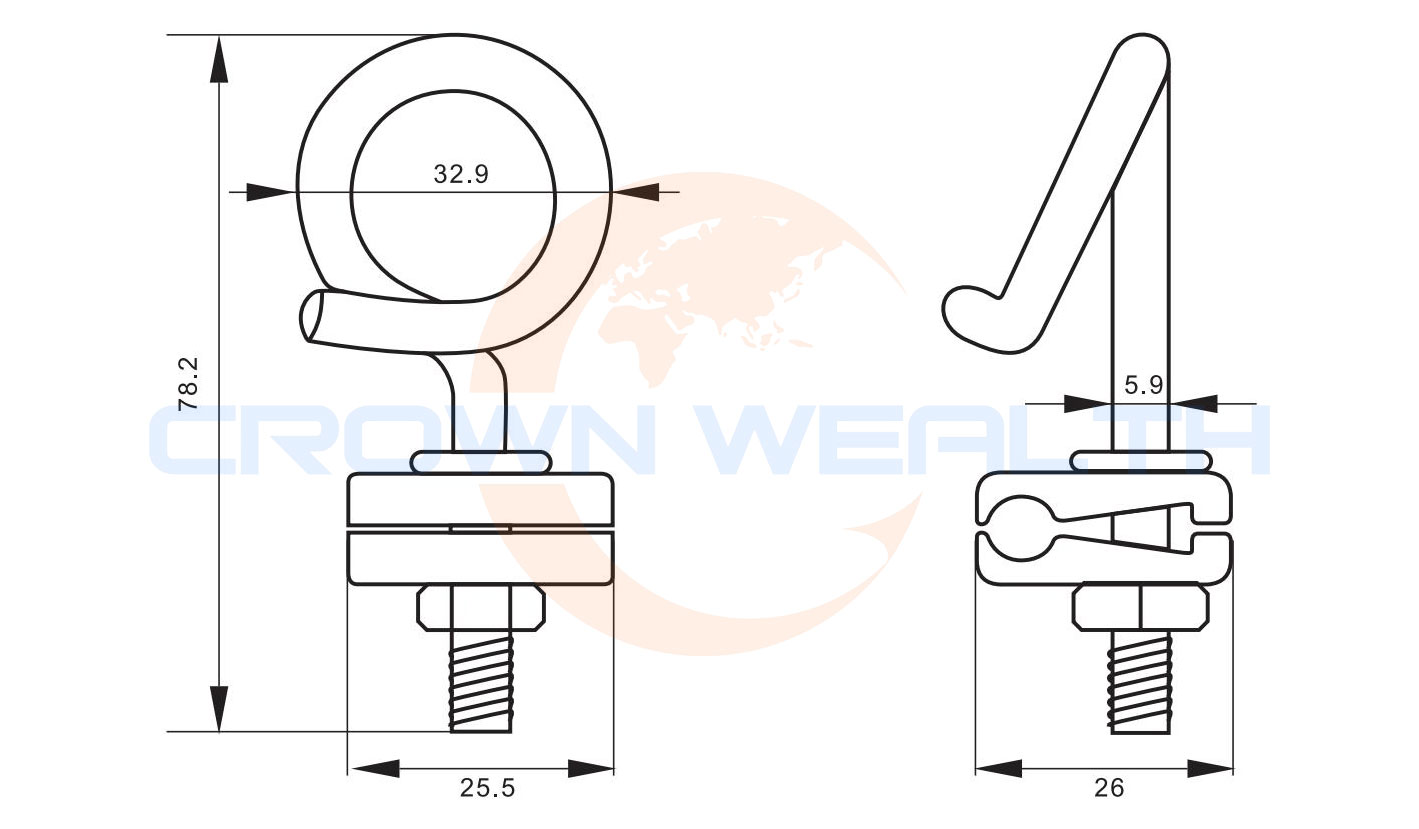

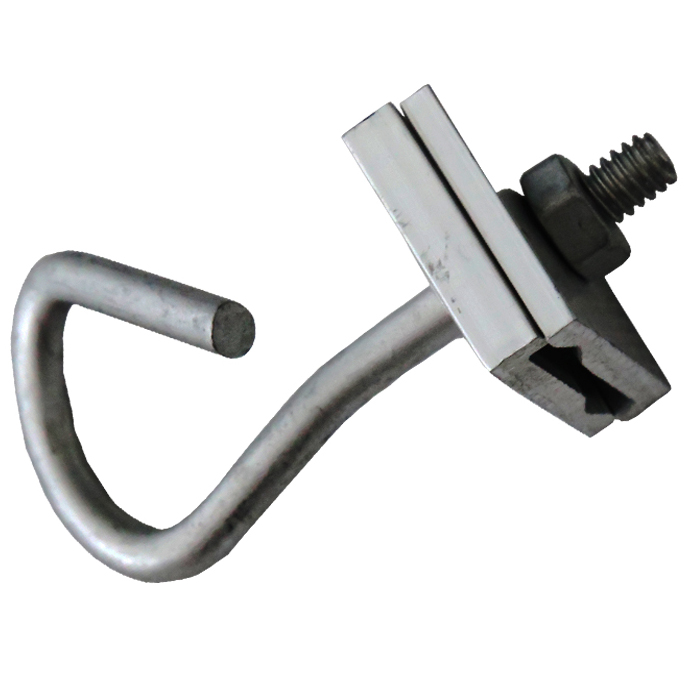

Q Span Clamp
Q Span Clamp consists of a set of steel jaws, a 1/4" diameter bolt, and a hex nut.
Material:
The Jaws are rolled and stamped from AISI 1018 tempered steel. Jaws are mechanically galvanized
The bolt and hex nut are formed from Grade 2 Steel. Nut and bolt are hot dip galvanized
Application:
Used in drop cable installations as an attachment to strand for either accepting the bail of drop wire clamps, or for wrapping the support wire of drop cable.
Attaches to strand ranging in size from 1/4" (6.6m) to 7/16"(16m)
| Part No. | Products | Mateiral | Strand Range |
| SH-QSC | Q Span Clamp | hot dipped galvanized | 1/4" (6.6m) to 7/16"(16m) |
