Application of Aerial Plant Hardware For CATV

Views:229     Author:Site Editor     Publish Time: 2018-11-07      Origin:Site

Application of Aerial Plant Hardware For CATV

    Aerial Plant hardware products contains: span clamp, Reinforcing strap, 2-1/2'' tap bracket, Cable lashing clamp, stainless lashing strap, B cable suspension clamp, drop wire clamp, cable tie and so on.

these above products are frequently used in Aerial facility construction project.

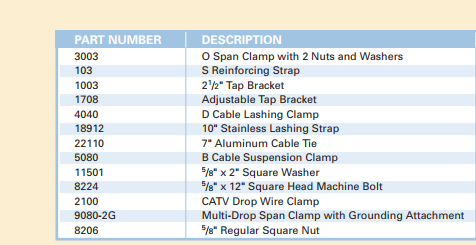

cable lashing clamp,span clamp, drop wire clamp

    By seeing the above picture you will find each part of them and will know what is the use of each and how does each part drop hardware works. The Picture is just a part of the project. You can see the straight line pole , an reinforcing strap(103)with fixed on the pole by an square head machine both(8224)with nut(8206) and the other side of the strap was connect to an B cable suspension clamp(5080)to make the strand tightly attached on the straight line pole. the aerial cable goes along with the strand and  tied by stainless lashing strap(18912)at certain distance.

    The 2-1/2''tap bracket (1003) and adjustable tap bracket (1708) was used to hold the terminal box to the strand. some aerial wire come from the terminal box one of them was connect by CATV drop wire clamp (2100), the other side of the CATV drop wire clamp was connect by an Multi-drop wire clamp (9080-2G) on the strand.One of the aerial wire goes along the strand to another direction fixed on the strand by the cable tie. A  O span clamp(3003) was installed on the strand attached with the aerial wire to the end user. By seen the above picture and introduction , i think you must have an general idea for the aerial drop attachment of CATV.
