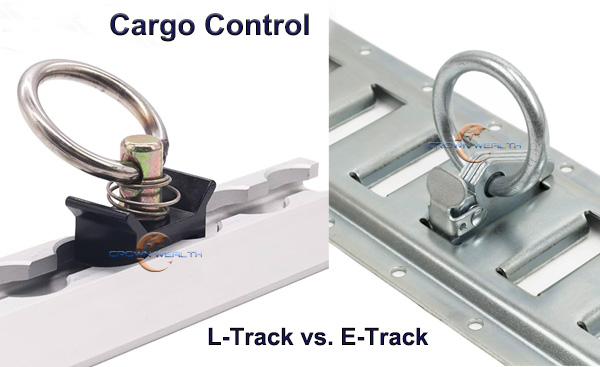

When it comes to securing cargo during transport, choosing the right tie-down system is crucial for safety and efficiency. L-track and E-track are two popular options used across various industries, from logistics to transportation. While both systems are designed to provide secure anchoring for cargo, they each offer unique advantages and applications. This article explains the key differences between L-track and E-track systems, providing you with the necessary reference to decide which one is best for your needs.

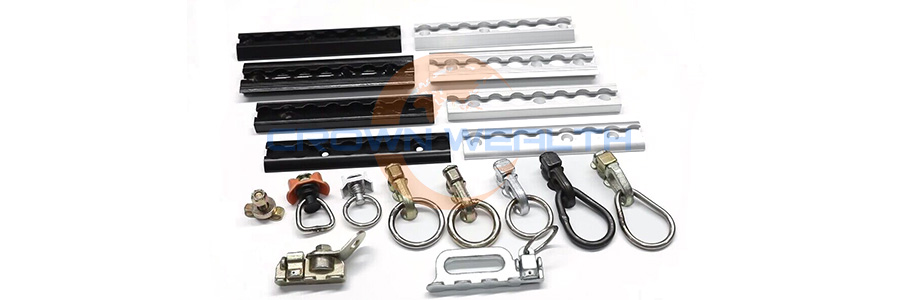

L-Track, also known as aviation track or logistics track, is a versatile cargo securing system consisting of aluminum tracks, accessories and straps. The system is highly adaptable, allowing for easy customization of tie-down points along the rail. It is commonly used in a variety of vehicles, from pickup trucks and trailers to enclosed vans and utility vehicles.
Standard L-Track: Known for its narrow profile, this type of L-track is ideal for use in vehicles with limited space, such as pickup trucks and vans. It is available in multiple colors and finishes, including powder-coated versions that provide extra durability and resistance to abrasions.
Aircraft Style L-Track: Made from high-quality 6351 aluminum, this style is stronger and is commonly used in the airline industry for securing seats. However, its robustness makes it suitable for a wide range of consumer tie-down applications, including recreational vehicle use.
Angled L-Track: With sloped edges, angled L-track is designed to facilitate the easy rolling of wheeled items, such as motorcycles and ATVs. It is commonly used in surface-mounted applications where ease of movement is essential.
Recessed L-Track: Designed for flush-mount installations, recessed L-track is ideal for applications where cargo needs to roll over the track. Its corrosion-resistant aluminum construction makes it suitable for both recreational and transportation uses.

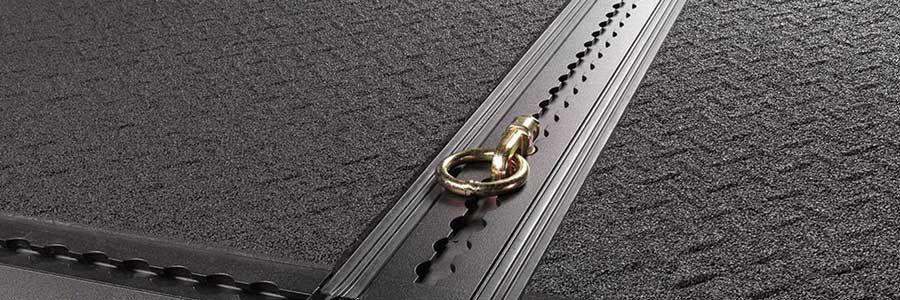

L-track is highly versatile and can be used in a variety of settings, including trailers, vans, utility vehicles, and even manufacturing facilities. Its ability to create multiple tie-down points along the rail makes it perfect for securing a range of cargo, including motorcycles, dirt bikes, ATVs, and industrial equipment.
Installing L-track is straightforward, with pre-drilled holes allowing for quick and easy surface or flush-mount installations. The system’s modular design makes it simple to customize tie-down configurations based on the specific cargo requirements.

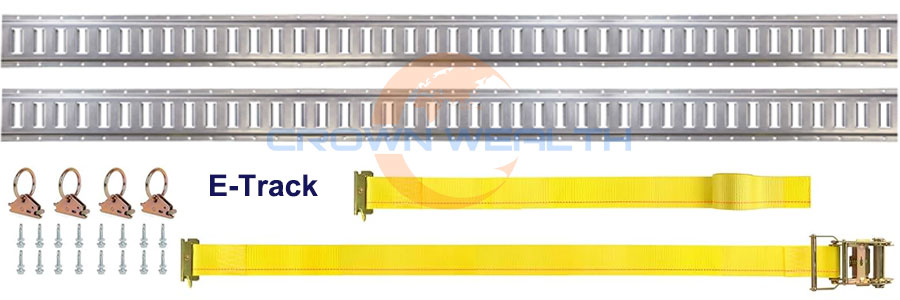

E-track, a popular cargo securement system for trailers and vans, consists of high-strength steel rails equipped with multiple slots that function as tie-down points. This cargo control system can be custom made to your needs, with a wide range of straps and accessories for use with the track.
Horizontal E-Track: This version of E-track is commonly installed on trailer floors and walls. It features slots running perpendicular to the rail, providing ample tie-down points for securing vehicles, cargo, and equipment. Horizontal E-track is the most common type used for flatbed trailers and enclosed cargo vans.
Vertical E-Track: Vertical E-track has a narrower profile and is ideal for accommodating cargo of varying sizes and heights. This track is often used in applications requiring a second level for cargo or when working with shoring beams. It provides more flexibility when securing items in both high and low positions within the trailer.

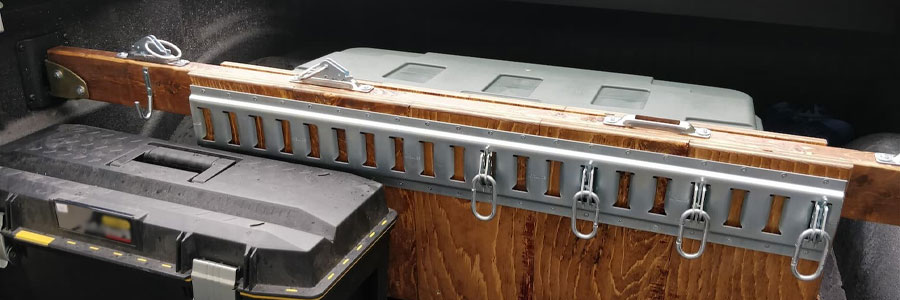

E-track is widely used in commercial and industrial applications. Its ability to secure cargo in both horizontal and vertical orientations makes it an ideal choice for flatbed trailers, enclosed semi-trailers, cargo vans, and moving trucks. Whether transporting machinery, vehicles, or general cargo, E-track offers a reliable and durable solution for cargo securement.
E-track can be mounted using screws, rivets or welding, depending on the specific requirements of your trailer or vehicle. It is available in various sizes, including 2', 5', 8', and 10' sections, and can be purchased with either a painted or galvanized finish for added durability.
Both L-track and E-track are made from high-strength materials, but L-track typically uses aluminum, while E-track is commonly made from steel. Aluminum L-track offers a lightweight, corrosion-resistant option, while steel E-track provides superior strength and durability for heavy-duty applications.
Both systems offer easy installation, but L-track's modular design and pre-drilled holes make it particularly user-friendly for quick tie-down adjustments. E-track, however, offers more flexibility in terms of installation orientation and the types of cargo it can secure, especially when used in vertical applications.
Both systems offer a wide range of accessories and fittings, including straps, hooks, and rings. L-track fittings tend to be smaller and more compact, offering precise tie-down points at any location along the rail. E-track fittings, meanwhile, are more varied and can include specialized options such as D-rings, rope tie-offs, and shoring beams.
L-track features a narrower profile compared to E-track, making it ideal for applications where space is limited. It is commonly used in pickup trucks and enclosed trailers, where maximizing available space is important. E-track, on the other hand, is generally larger and is better suited for flatbed trailers and semi-trucks.
When deciding between L-track and E-track, consider the following factors:
- Available Space: If you are working with limited space in a pickup truck or enclosed trailer, L-track’s narrow profile makes it a more suitable choice. For larger applications, such as flatbed trailers or cargo vans, E-track provides ample tie-down points and greater flexibility.
- Cargo Type: If you need to secure smaller items or wheeled objects like motorcycles and ATVs, L-track’s modular system offers easy adjustments and quick installations. For heavier cargo and industrial use, E-track’s steel construction and versatile fittings are the ideal option.
- Durability Needs: Both systems are built to withstand demanding environments, but E-track’s steel construction may be better suited for long-term use in high-stress applications, while L-track offers a lighter, more corrosion-resistant alternative for less heavy-duty needs.
Both L-track and E-track provide reliable and efficient solutions for cargo securement. By understanding their key differences, you can make the right choice based on the size, weight, and type of cargo you are transporting, as well as the space and durability of your vehicle or trailer. Whether you choose L-track for its space-saving design or E-track for its heavy-duty strength, both systems are essential tools for ensuring that your cargo is securely fastened and safely transported. Choosing the right track system is an investment in your cargo’s safety and your operational efficiency.
If you want to buy cargo control track system from China, contact us now to get the best ex-factory price.
L-Track features a narrower profile, often made of aluminum, and is more space-efficient for confined spaces like pickup trucks and trailers. E-Track is made from steel, has a wider profile, and is typically used in larger applications such as flatbed trailers and cargo vans.
L-Track is generally more flexible for securing motorcycles due to its narrow profile and modular design, allowing for quick adjustments to tie-down points. E-Track is better suited for larger cargo but can still work well for motorcycles when used with appropriate fittings.
Yes, both systems can be used in the same vehicle, provided there's space and proper installation. Some setups may even combine both to optimize cargo securement.
L-Track is typically made from corrosion-resistant aluminum, while E-Track is made from high-strength steel. The choice of material affects weight, durability, and corrosion resistance.
Both L-Track and E-Track come with pre-drilled holes for easy installation. L-Track can be surface mounted or flush mounted, while E-Track can be mounted horizontally or vertically depending on your needs.
L-Track is ideal for securing smaller, lighter cargo like motorcycles, ATVs, and snowmobiles. E-Track is better for heavier loads, such as vehicles, machinery, and bulk cargo.
Two cargo control systems, L-Track and E-Track, can be used with each type of strap. It's important to choose the right fittings (single stud, double stud, D-rings, etc.) that match the track's slots.
L-Track typically has a lower weight capacity, around 1,000 to 2,000 pounds per tie-down point. E-Track, made of steel, can handle significantly heavier loads, often exceeding 3,000 pounds per tie-down point.
Yes, both systems are durable enough for outdoor use. L-Track, especially in powder-coated finishes, offers good corrosion resistance, while E-Track’s steel construction is also available in galvanized or painted finishes for added weather protection.
For L-Track, popular accessories include spring fittings, ratchet straps, and D-rings. For E-Track, options include shoring beams, spring E-fittings, and adjustable tie-down straps, all designed to enhance the system’s versatility and secure different types of cargo.
