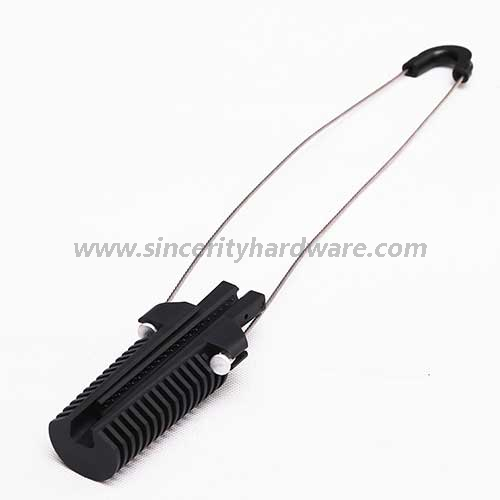

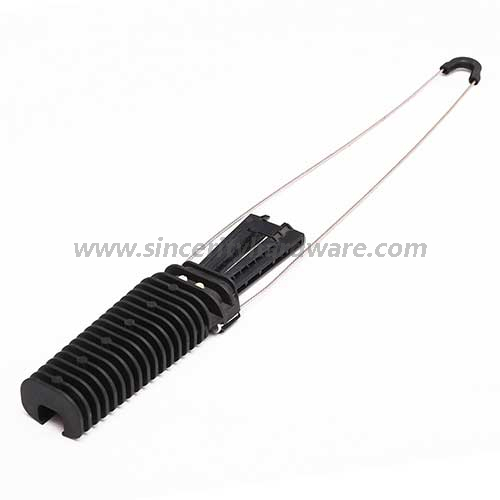

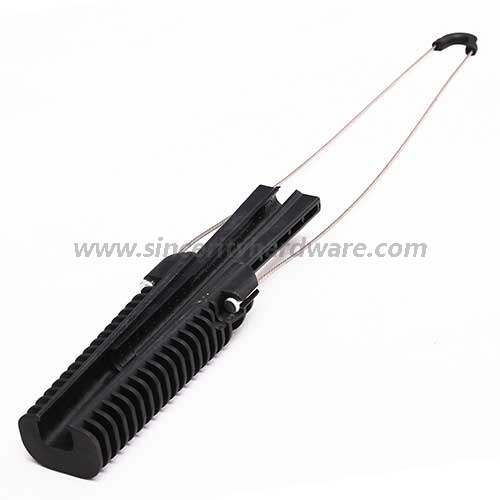

Anchor Clamps for ADSS Cable are designed for dead-ending aerial ADSS cables on access networks when span do not exceed 100m. And different capacities are available to adapt to the cable.
These anchor clamps with open conical body form a jaw with two plastic wedges engineered to grip onto the cable and a flexible bail equipped with a thimble. The bail can be locked onto the clamp body once passed through the pole bracket and re-opened by hand at any time when the clamp is not under full load.
All parts of ACADSS Anchor Clamp are secured together to prevent any loss during installation.
The ACADSS C Anchor Clamps are used for dead-ending applications of aerial round fiber optic cables with ADSS structure on cross-arms or pole brackets. This range is compatible with cables Ø from 6 to 14mm, with HDPE insulation on distribution networks up to 90m spans.
Dead-ending of 6 to 20 mm ADSS cables
Minimum breaking load of 500/600 daN
Installation on any pole hardware fitting: brackets, cross-arms or eye bolt with a min eye Ø of 15 mm
4kV thimble as standard. 11 kV thimble available
All plastic parts are UV resistant and tested in conditions
equivalent to min 25 years of service in tropical environment
Light and compact products
Easy, quick and safe dead-ending
Installation takes seconds
The flexible bail provides an extra protection to the cable against vibrations
4 kV or 11 kV insulation provided
| PART NUMBER | SUITABLE CABLE DIA. (MM) | WEDGE MATERIAL | BAIL MATERIAL | BREAKING LOAD |
|---|---|---|---|---|
| CWAC10 | 6~10mm | Thermoplastic | Stainless Steel | 6KN |
| CWAC12 | 8~12mm | Thermoplastic | Stainless Steel | 6KN |
| CWAC14 | 10~14mm | Thermoplastic | Stainless Steel | 6KN |
| CWAC16 | 12~16mm | Thermoplastic | Stainless Steel | 6KN |
| CWAC18 | 14~18mm | Thermoplastic | Stainless Steel | 6KN |
| CWAC20 | 16~20mm | Thermoplastic | Stainless Steel | 6KN |
