| Quantity: | |
|---|---|

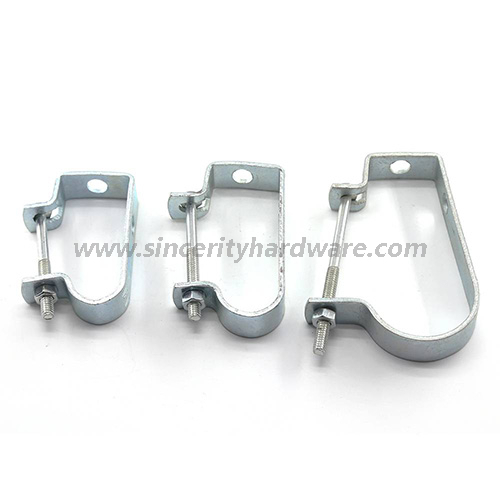

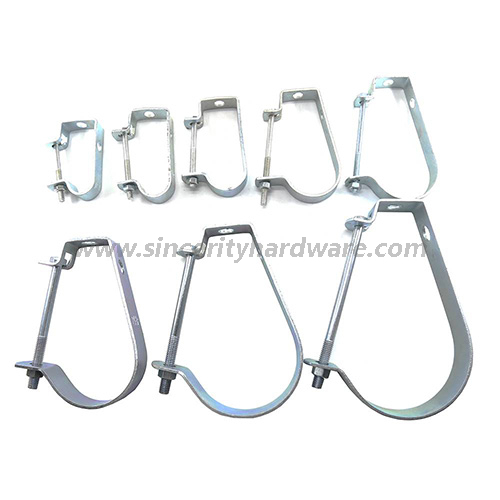

1. J shape adjustable pipe hangers are mainly for vertical pipe lines. It’s adjustable according to the situation.
2. The J pipe hanger size range is from 3/8” to 8”.
3. The common material is galvanized carbon steel, meet or exceed the requirements of ASTM standard.
4. OEM manufacturer and wholesaler. The MOQ is 3000 pcs each size.
5. Other surface treatment, like powder coated, also available.
Part No. | Pipe Size | A (mm) | B (mm) | C (mm) | D (mm) |
CWJSH-01 | 1/2” | 10 | 67 | 25.4 | 41 |
CWJSH-02 | 3/4” | 10 | 73 | 25.4 | 47 |
CWJSH-03 | 1” | 10 | 78 | 25.4 | 52 |
CWJSH-04 | 1 1/4” | 10 | 84 | 27 | 57 |
CWJSH-05 | 1 1/2” | 10 | 90 | 27 | 63 |
CWJSH-06 | 2” | 10 | 95 | 28.6 | 66 |
CWJSH-07 | 2 1/2” | 13 | 112 | 28.6 | 84 |
CWJSH-08 | 3” | 13 | 123 | 28.6 | 95 |
CWJSH-09 | 3 1/2” | 13 | 131 | 28.6 | 103 |
CWJSH-10 | 4” | 17 | 156 | 28.6 | 127 |
CWJSH-11 | 5” | 17 | 171 | 28.6 | 142 |
CWJSH-12 | 6” | 20 | 196 | 31.7 | 165 |
CWJSH-13 | 8” | 20 | 235 | 31.7 | 203 |
1. J shape adjustable pipe hangers are mainly for vertical pipe lines. It’s adjustable according to the situation.
2. The J pipe hanger size range is from 3/8” to 8”.
3. The common material is galvanized carbon steel, meet or exceed the requirements of ASTM standard.
4. OEM manufacturer and wholesaler. The MOQ is 3000 pcs each size.
5. Other surface treatment, like powder coated, also available.
Part No. | Pipe Size | A (mm) | B (mm) | C (mm) | D (mm) |
CWJSH-01 | 1/2” | 10 | 67 | 25.4 | 41 |
CWJSH-02 | 3/4” | 10 | 73 | 25.4 | 47 |
CWJSH-03 | 1” | 10 | 78 | 25.4 | 52 |
CWJSH-04 | 1 1/4” | 10 | 84 | 27 | 57 |
CWJSH-05 | 1 1/2” | 10 | 90 | 27 | 63 |
CWJSH-06 | 2” | 10 | 95 | 28.6 | 66 |
CWJSH-07 | 2 1/2” | 13 | 112 | 28.6 | 84 |
CWJSH-08 | 3” | 13 | 123 | 28.6 | 95 |
CWJSH-09 | 3 1/2” | 13 | 131 | 28.6 | 103 |
CWJSH-10 | 4” | 17 | 156 | 28.6 | 127 |
CWJSH-11 | 5” | 17 | 171 | 28.6 | 142 |
CWJSH-12 | 6” | 20 | 196 | 31.7 | 165 |
CWJSH-13 | 8” | 20 | 235 | 31.7 | 203 |
