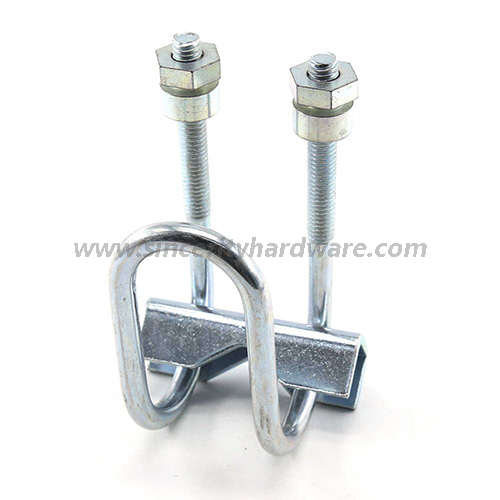

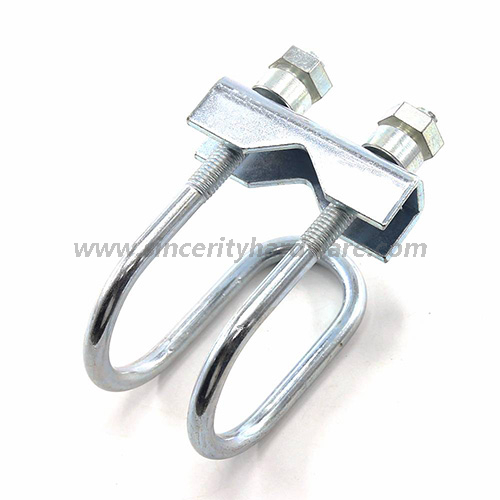

1. Seismic sway brace hanger/clamp is a part of the sway brace attachments. They are used to form a complete sway brace assembly.
2. The diameter of the thread is 3/8”.
3. The nut is high quality anti-theft nut. It’s much more expensive than common nuts.
4. The specification and quality comply to the UL/FM standards.
5. The surface is galvanized.
Part No. | Bracing Pipe Size | Pipe Size |
CWSBH-01 | 1” | 1” |
CWSBH-02 | 1” | 1 1/4” |
CWSBH-03 | 1” | 1 1/2” |
CWSBH-04 | 1” | 2” |
CWSBH-05 | 1” | 2 1/2” |
CWSBH-06 | 1” | 3” |
CWSBH-07 | 1” | 4” |
CWSBH-08 | 1” | 6” |
CWSBH-09 | 1 1/4” | 1” |
CWSBH-10 | 1 1/4” | 1 1/4” |
CWSBH-11 | 1 1/4” | 1 1/2” |
CWSBH-12 | 1 1/4” | 2” |
CWSBH-13 | 1 1/4” | 2 1/2” |
CWSBH-14 | 1 1/4” | 3” |
CWSBH-15 | 1 1/4” | 4” |
CWSBH-16 | 1 1/4” | 6” |
