Preformed suspension clamps for ADSS cable are used for the suspension and support connection of optical cables on linear poles and towers. Used well for protection of the optical cable, without concentrated stress. And avoids the abnormal situation of the optical cable having an excessively small bending radius and stress concentration.
The gripping force of the clamp is greater than 10%-20% of the rated tensile strength of the optical cable. The installation is convenient. Has excellent fatigue resistance, and plays an auxiliary shock absorption role for the OPGW optical cable.

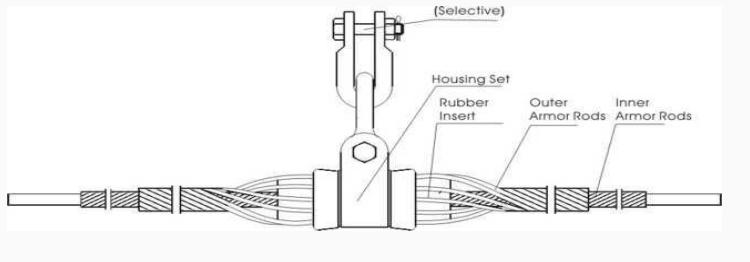

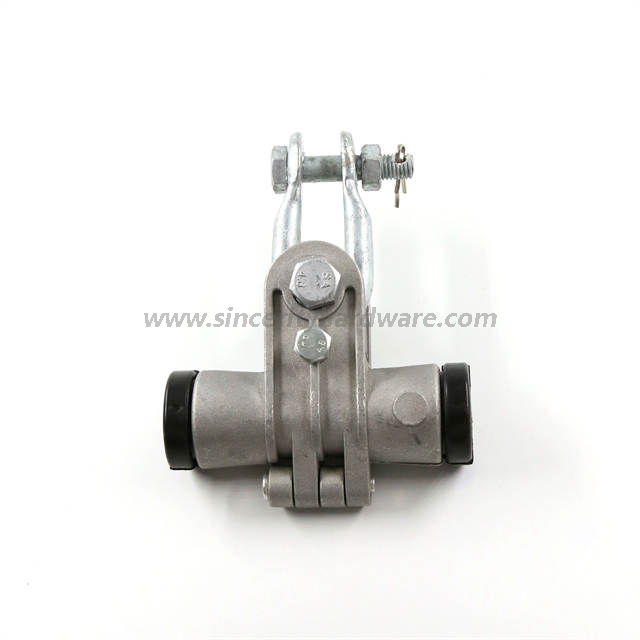

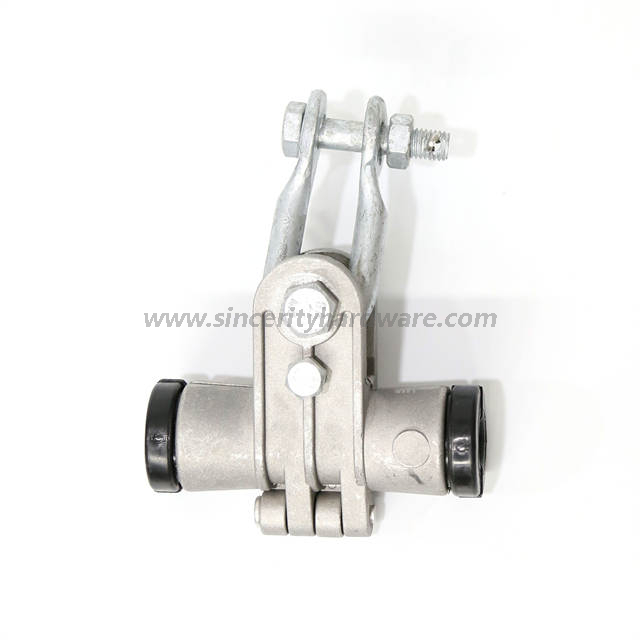

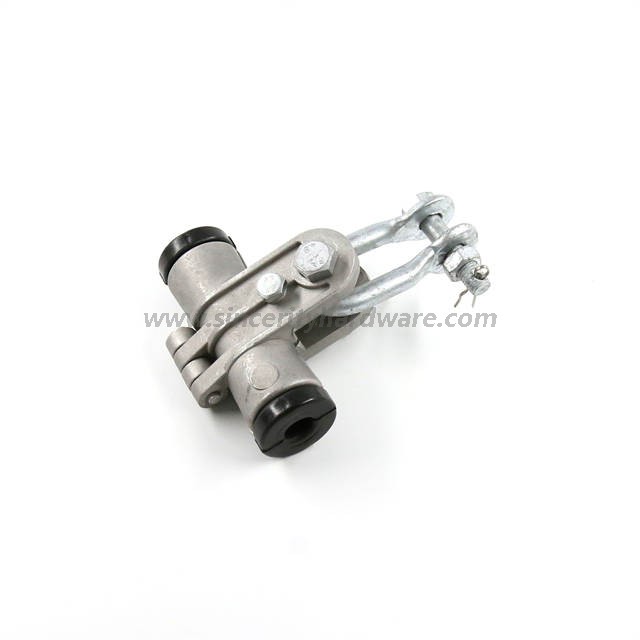

The whole set of suspension clamps includes: inner and outer layers of pre-twisted wires, suspension heads and supporting connecting hardware.
Features:
Materials are metal and rubber, aluminium alloy wire .

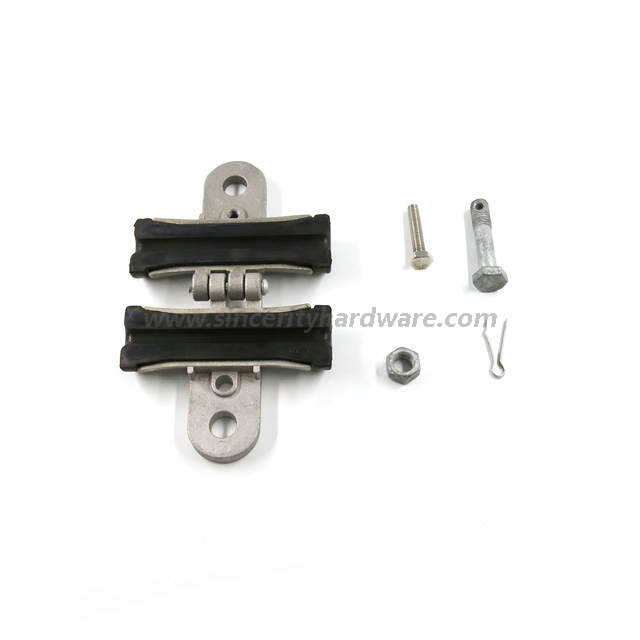

Includes: armor rods, rubber clamp piece, cover shell, right-angle hanging loop, U-shaped hanging loop, bolt, nut, gasket etc.
Poles/towers with span of less than 1000m, and line angle between 15°-18°
Higher supporting capability of dynamic stress, corner angle of less than or equal to 25°in straight lines. The angle of single-side.
Installation easyand aging resistance.
Packing with carton box or wooden pallet.
Specification table:
Production Name | Code | Available Dia. of Cable(mm) | Length of Outer Rods(mm) | Length of Inner rods(mm) | Weight(kg) | Span(m) | Color |
Two layers Preformed Suspension clamp for ADSS cable | CW-GUYSA-030 0960 | 9.0-9.6 | 1060 | 1500 | 1.45 | 200-300 | Yellow |
CW-GUYSA-030 1010 | 9.7-10.1 | 1060 | 1500 | 1.45 | 200-300 | Red | |
CW-GUYSA-030 1060 | 10.2-10.6 | 1060 | 1500 | 1.51 | 200-300 | Blue | |
CW-GUYSA-030 1110 | 10.7-11.1 | 1060 | 1500 | 1.51 | 200-300 | Green | |
CW-GUYSA-030 1160 | 11.2-11.6 | 1080 | 1540 | 1.63 | 200-300 | Orange | |
CW-GUYSA-030 1170 | 11.7-11.7 | 1080 | 1540 | 1.71 | 200-300 | Black | |
CW-GUYSA-030 1200 | 11.8-12.0 | 1160 | 1680 | 1.86 | 200-300 | Yellow | |
CW-GUYSA-030 1270 | 12.1-12.7 | 1160 | 1680 | 1.86 | 200-300 | Red | |
CW-GUYSA-030 1290 | 12.8-12.9 | 1160 | 1680 | 2.04 | 200-300 | Blue | |
CW-GUYSA-030 1360 | 13.0-13.6 | 1250 | 1800 | 2.21 | 200-300 | Green | |
CW-GUYSA-030 1410 | 13.7-14.1 | 1250 | 1800 | 2.21 | 200-300 | Orange | |
CW-GUYSA-030 1430 | 14.2-14.3 | 1250 | 1800 | 2.21 | 200-300 | Black | |
CW-GUYSA-030 1450 | 14.4-14.5 | 1250 | 1800 | 2.32 | 200-300 | Yellow | |
CW-GUYSA-030 1510 | 14.6-15.1 | 1250 | 1800 | 2.4 | 200-300 | Red | |
CW-GUYSA-030 0960 400 | 9.0-9.6 | 1100 | 1600 | 1.53 | 300-400 | Blue | |
CW-GUYSA-040 1010 400 | 9.7-10.1 | 1100 | 1600 | 1.59 | 300-400 | Green | |
CW-GUYSA-040 1060 400 | 10.2-10.6 | 1100 | 1600 | 1.69 | 300-400 | Orange | |
CW-GUYSA-040 1110 400 | 10.7-11.1 | 1100 | 1600 | 1.69 | 300-400 | Black | |
CW-GUYSA-040 1160 400 | 11.2-11.6 | 1100 | 1600 | 1.76 | 300-400 | Yellow | |
CW-GUYSA-040 1170 400 | 11.7-11.7 | 1100 | 1600 | 1.76 | 300-400 | Red | |
CW-GUYSA-040 1200 400 | 11.8-12.0 | 1200 | 1720 | 1.9 | 300-400 | Blue | |
CW-GUYSA-040 1270 | 12.1-12.7 | 1200 | 1720 | 1.91 | 300-400 | Green | |
CW-GUYSA-040 1290 | 12.8-12.9 | 1200 | 1720 | 2.08 | 300-400 | Orange | |
CW-GUYSA-040 1360 | 13.0-13.6 | 1300 | 1840 | 2.25 | 300-400 | Black | |
CW-GUYSA-040 1410 | 13.7-14.1 | 1300 | 1840 | 2.25 | 300-400 | Yellow | |
CW-GUYSA-040 1430 | 14.2-14.3 | 1300 | 1840 | 2.44 | 300-400 | Red | |
CW-GUYSA-040 1450 | 14.4-14.5 | 1300 | 1840 | 2.44 | 300-400 | Blue | |
CW-GUYSA-040 1510 | 14.6-15.1 | 1300 | 1840 | 2.44 | 300-400 | Green | |
CW-GUYSA-050 1270 | 12.1-12.7 | 1260 | 1760 | 2 | 400-500 | Orange | |
CW-GUYSA-050 1290 | 12.8-12.9 | 1260 | 1760 | 2.22 | 400-500 | Black | |
CW-GUYSA-050 1360 | 13.0-13.6 | 1300 | 1860 | 2.32 | 400-500 | Yellow | |
CW-GUYSA-050 1410 | 13.7-14.1 | 1300 | 1860 | 2.32 | 400-500 | Red | |
CW-GUYSA-050 1430 | 14.2-14.3 | 1300 | 1860 | 2.32 | 400-500 | Blue | |
CW-GUYSA-050 1450 | 14.4-14.5 | 1360 | 1940 | 2.54 | 400-500 | Green | |
CW-GUYSA-050 1510 | 14.6-15.1 | 1360 | 1940 | 2.64 | 400-500 | Orange | |
CW-GUYSA-050 1580 | 15.2-15.8 | 1360 | 1940 | 2.64 | 400-500 | Black | |
CW-GUYSA-050 1600 | 15.9-16.0 | 1420 | 2040 | 2.87 | 400-500 | Yellow | |
CW-GUYSA-050 1690 | 16.1-16.9 | 1420 | 2040 | 2.87 | 400-500 | Red | |
CW-GUYSA-060 1270 | 12.1-12.7 | 1300 | 1800 | 2.03 | 500-600 | Blue | |
CW-GUYSA-060 1290 | 12.8-12.9 | 1300 | 1800 | 2.23 | 500-600 | Green | |
CW-GUYSA-060 1360 | 13.0-13.6 | 1360 | 1920 | 2.34 | 500-600 | Orange | |
CW-GUYSA-060 1410 | 13.7-14.1 | 1360 | 1920 | 2.35 | 500-600 | Black | |
CW-GUYSA-060 1430 | 14.2-14.3 | 1360 | 1920 | 2.55 | 500-600 | Yellow | |
CW-GUYSA-060 1450 | 14.4-14.5 | 1400 | 2000 | 2.63 | 500-600 | Red | |
CW-GUYSA-060 1510 | 14.6-15.1 | 1400 | 2000 | 2.63 | 500-600 | Blue | |
CW-GUYSA-060 1580 | 15.2-15.8 | 1400 | 2000 | 2.63 | 500-600 | Green | |
CW-GUYSA-060 1600 | 15.9-16.0 | 1520 | 2120 | 2.92 | 500-600 | Orange | |
CW-GUYSA-060 1690 | 16.1-16.9 | 1520 | 2120 | 2.92 | 500-600 | Black | |
CW-GUYSA-080 1430 | 14.2-14.3 | 1460 | 2060 | 2.73 | 700-800 | Yellow | |
CW-GUYSA-080 1450 | 14.4-14.5 | 1460 | 2120 | 2.77 | 700-800 | Red | |
CW-GUYSA-080 1510 | 14.6-15.1 | 1460 | 2120 | 2.77 | 700-800 | Blue | |
CW-GUYSA-080 1580 | 15.2-15.8 | 1480 | 2120 | 2.79 | 700-800 | Green | |
CW-GUYSA-080 1600 | 15.9-16.0 | 1580 | 2200 | 3.04 | 700-800 | Orange | |
CW-GUYSA-080 1690 | 16.1-16.9 | 1580 | 2200 | 3.04 | 700-800 | Black | |
CW-GUYSA-080 1730 | 17.0-17.3 | 1580 | 2200 | 3.28 | 700-800 | Yellow | |
CW-GUYSA-080 1800 | 17.4-18.0 | 1580 | 2200 | 3.28 | 700-800 | Red | |
CW-GUYSA-100 1580 | 15.2-15.8 | 1560 | 2340 | 3 | 900-1000 | Blue | |
CW-GUYSA-100 1600 | 15.9-16.0 | 1680 | 2590 | 3.37 | 900-1000 | Green | |
CW-GUYSA-100 1690 | 16.1-16.9 | 1680 | 2590 | 3.37 | 900-1000 | Orange | |
CW-GUYSA-100 1730 | 17.0-17.3 | 1680 | 2590 | 3.63 | 900-1000 | Black | |
CW-GUYSA-100 1800 | 17.4-18.0 | 1680 | 2590 | 3.63 | 900-1000 | Yellow | |
CW-GUYSA-100 1880 | 18.1-18.8 | 1680 | 2590 | 3.63 | 900-1000 | Red |
Preformed suspension clamps for ADSS cable are used for the suspension and support connection of optical cables on linear poles and towers. Used well for protection of the optical cable, without concentrated stress. And avoids the abnormal situation of the optical cable having an excessively small bending radius and stress concentration.
The gripping force of the clamp is greater than 10%-20% of the rated tensile strength of the optical cable. The installation is convenient. Has excellent fatigue resistance, and plays an auxiliary shock absorption role for the OPGW optical cable.
The whole set of suspension clamps includes: inner and outer layers of pre-twisted wires, suspension heads and supporting connecting hardware.
Features:
Materials are metal and rubber, aluminium alloy wire .
Includes: armor rods, rubber clamp piece, cover shell, right-angle hanging loop, U-shaped hanging loop, bolt, nut, gasket etc.
Poles/towers with span of less than 1000m, and line angle between 15°-18°
Higher supporting capability of dynamic stress, corner angle of less than or equal to 25°in straight lines. The angle of single-side.
Installation easyand aging resistance.
Packing with carton box or wooden pallet.
Specification table:
Production Name | Code | Available Dia. of Cable(mm) | Length of Outer Rods(mm) | Length of Inner rods(mm) | Weight(kg) | Span(m) | Color |
Two layers Preformed Suspension clamp for ADSS cable | CW-GUYSA-030 0960 | 9.0-9.6 | 1060 | 1500 | 1.45 | 200-300 | Yellow |
CW-GUYSA-030 1010 | 9.7-10.1 | 1060 | 1500 | 1.45 | 200-300 | Red | |
CW-GUYSA-030 1060 | 10.2-10.6 | 1060 | 1500 | 1.51 | 200-300 | Blue | |
CW-GUYSA-030 1110 | 10.7-11.1 | 1060 | 1500 | 1.51 | 200-300 | Green | |
CW-GUYSA-030 1160 | 11.2-11.6 | 1080 | 1540 | 1.63 | 200-300 | Orange | |
CW-GUYSA-030 1170 | 11.7-11.7 | 1080 | 1540 | 1.71 | 200-300 | Black | |
CW-GUYSA-030 1200 | 11.8-12.0 | 1160 | 1680 | 1.86 | 200-300 | Yellow | |
CW-GUYSA-030 1270 | 12.1-12.7 | 1160 | 1680 | 1.86 | 200-300 | Red | |
CW-GUYSA-030 1290 | 12.8-12.9 | 1160 | 1680 | 2.04 | 200-300 | Blue | |
CW-GUYSA-030 1360 | 13.0-13.6 | 1250 | 1800 | 2.21 | 200-300 | Green | |
CW-GUYSA-030 1410 | 13.7-14.1 | 1250 | 1800 | 2.21 | 200-300 | Orange | |
CW-GUYSA-030 1430 | 14.2-14.3 | 1250 | 1800 | 2.21 | 200-300 | Black | |
CW-GUYSA-030 1450 | 14.4-14.5 | 1250 | 1800 | 2.32 | 200-300 | Yellow | |
CW-GUYSA-030 1510 | 14.6-15.1 | 1250 | 1800 | 2.4 | 200-300 | Red | |
CW-GUYSA-030 0960 400 | 9.0-9.6 | 1100 | 1600 | 1.53 | 300-400 | Blue | |
CW-GUYSA-040 1010 400 | 9.7-10.1 | 1100 | 1600 | 1.59 | 300-400 | Green | |
CW-GUYSA-040 1060 400 | 10.2-10.6 | 1100 | 1600 | 1.69 | 300-400 | Orange | |
CW-GUYSA-040 1110 400 | 10.7-11.1 | 1100 | 1600 | 1.69 | 300-400 | Black | |
CW-GUYSA-040 1160 400 | 11.2-11.6 | 1100 | 1600 | 1.76 | 300-400 | Yellow | |
CW-GUYSA-040 1170 400 | 11.7-11.7 | 1100 | 1600 | 1.76 | 300-400 | Red | |
CW-GUYSA-040 1200 400 | 11.8-12.0 | 1200 | 1720 | 1.9 | 300-400 | Blue | |
CW-GUYSA-040 1270 | 12.1-12.7 | 1200 | 1720 | 1.91 | 300-400 | Green | |
CW-GUYSA-040 1290 | 12.8-12.9 | 1200 | 1720 | 2.08 | 300-400 | Orange | |
CW-GUYSA-040 1360 | 13.0-13.6 | 1300 | 1840 | 2.25 | 300-400 | Black | |
CW-GUYSA-040 1410 | 13.7-14.1 | 1300 | 1840 | 2.25 | 300-400 | Yellow | |
CW-GUYSA-040 1430 | 14.2-14.3 | 1300 | 1840 | 2.44 | 300-400 | Red | |
CW-GUYSA-040 1450 | 14.4-14.5 | 1300 | 1840 | 2.44 | 300-400 | Blue | |
CW-GUYSA-040 1510 | 14.6-15.1 | 1300 | 1840 | 2.44 | 300-400 | Green | |
CW-GUYSA-050 1270 | 12.1-12.7 | 1260 | 1760 | 2 | 400-500 | Orange | |
CW-GUYSA-050 1290 | 12.8-12.9 | 1260 | 1760 | 2.22 | 400-500 | Black | |
CW-GUYSA-050 1360 | 13.0-13.6 | 1300 | 1860 | 2.32 | 400-500 | Yellow | |
CW-GUYSA-050 1410 | 13.7-14.1 | 1300 | 1860 | 2.32 | 400-500 | Red | |
CW-GUYSA-050 1430 | 14.2-14.3 | 1300 | 1860 | 2.32 | 400-500 | Blue | |
CW-GUYSA-050 1450 | 14.4-14.5 | 1360 | 1940 | 2.54 | 400-500 | Green | |
CW-GUYSA-050 1510 | 14.6-15.1 | 1360 | 1940 | 2.64 | 400-500 | Orange | |
CW-GUYSA-050 1580 | 15.2-15.8 | 1360 | 1940 | 2.64 | 400-500 | Black | |
CW-GUYSA-050 1600 | 15.9-16.0 | 1420 | 2040 | 2.87 | 400-500 | Yellow | |
CW-GUYSA-050 1690 | 16.1-16.9 | 1420 | 2040 | 2.87 | 400-500 | Red | |
CW-GUYSA-060 1270 | 12.1-12.7 | 1300 | 1800 | 2.03 | 500-600 | Blue | |
CW-GUYSA-060 1290 | 12.8-12.9 | 1300 | 1800 | 2.23 | 500-600 | Green | |
CW-GUYSA-060 1360 | 13.0-13.6 | 1360 | 1920 | 2.34 | 500-600 | Orange | |
CW-GUYSA-060 1410 | 13.7-14.1 | 1360 | 1920 | 2.35 | 500-600 | Black | |
CW-GUYSA-060 1430 | 14.2-14.3 | 1360 | 1920 | 2.55 | 500-600 | Yellow | |
CW-GUYSA-060 1450 | 14.4-14.5 | 1400 | 2000 | 2.63 | 500-600 | Red | |
CW-GUYSA-060 1510 | 14.6-15.1 | 1400 | 2000 | 2.63 | 500-600 | Blue | |
CW-GUYSA-060 1580 | 15.2-15.8 | 1400 | 2000 | 2.63 | 500-600 | Green | |
CW-GUYSA-060 1600 | 15.9-16.0 | 1520 | 2120 | 2.92 | 500-600 | Orange | |
CW-GUYSA-060 1690 | 16.1-16.9 | 1520 | 2120 | 2.92 | 500-600 | Black | |
CW-GUYSA-080 1430 | 14.2-14.3 | 1460 | 2060 | 2.73 | 700-800 | Yellow | |
CW-GUYSA-080 1450 | 14.4-14.5 | 1460 | 2120 | 2.77 | 700-800 | Red | |
CW-GUYSA-080 1510 | 14.6-15.1 | 1460 | 2120 | 2.77 | 700-800 | Blue | |
CW-GUYSA-080 1580 | 15.2-15.8 | 1480 | 2120 | 2.79 | 700-800 | Green | |
CW-GUYSA-080 1600 | 15.9-16.0 | 1580 | 2200 | 3.04 | 700-800 | Orange | |
CW-GUYSA-080 1690 | 16.1-16.9 | 1580 | 2200 | 3.04 | 700-800 | Black | |
CW-GUYSA-080 1730 | 17.0-17.3 | 1580 | 2200 | 3.28 | 700-800 | Yellow | |
CW-GUYSA-080 1800 | 17.4-18.0 | 1580 | 2200 | 3.28 | 700-800 | Red | |
CW-GUYSA-100 1580 | 15.2-15.8 | 1560 | 2340 | 3 | 900-1000 | Blue | |
CW-GUYSA-100 1600 | 15.9-16.0 | 1680 | 2590 | 3.37 | 900-1000 | Green | |
CW-GUYSA-100 1690 | 16.1-16.9 | 1680 | 2590 | 3.37 | 900-1000 | Orange | |
CW-GUYSA-100 1730 | 17.0-17.3 | 1680 | 2590 | 3.63 | 900-1000 | Black | |
CW-GUYSA-100 1800 | 17.4-18.0 | 1680 | 2590 | 3.63 | 900-1000 | Yellow | |
CW-GUYSA-100 1880 | 18.1-18.8 | 1680 | 2590 | 3.63 | 900-1000 | Red |
