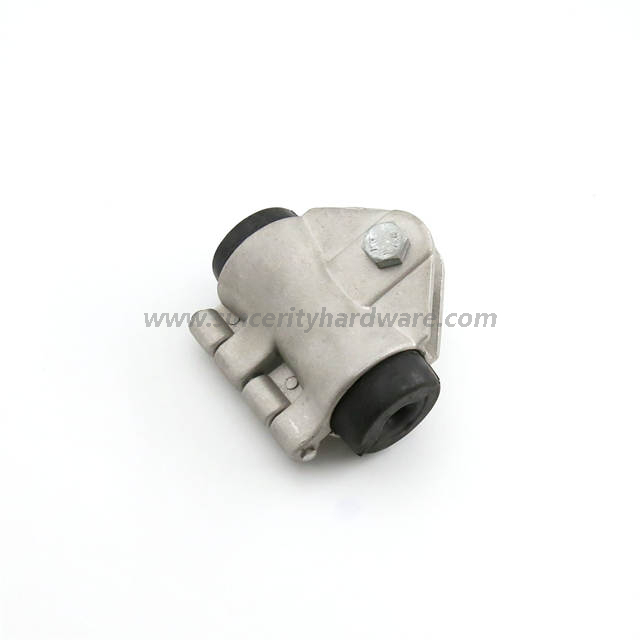

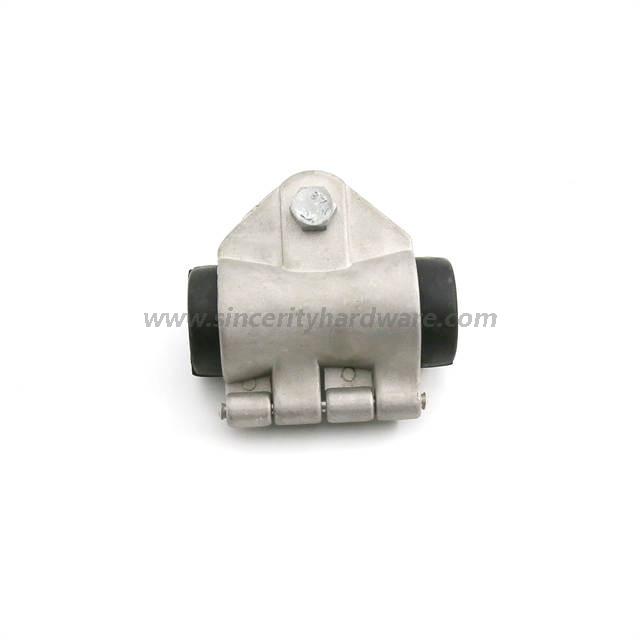

Preformed suspension clamps for ADSS cable are used for the suspension and support connection of optical cables on linear poles and towers. Used well for protection of the optical cable, without concentrated stress. And avoids the abnormal situation of the optical cable having an excessively small bending radius and stress concentration.
The gripping force of the clamp is greater than 10%-20% of the rated tensile strength of the optical cable. The installation is convenient. Has excellent fatigue resistance, and plays an auxiliary shock absorption role for the ADSS optical cable.
Features:
Materials are metal and rubber.

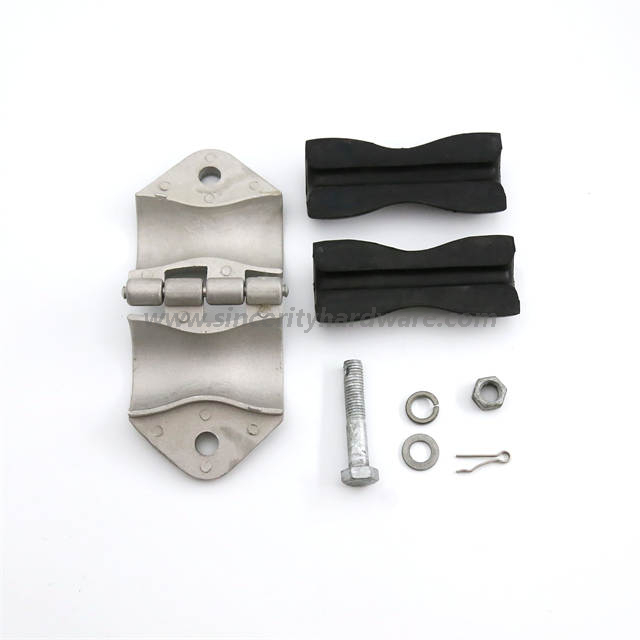

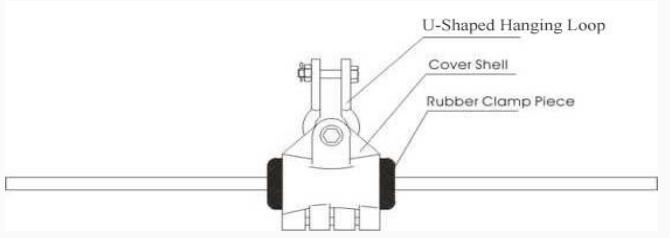

Includes: rubber clamp piece, cover shall, U-shaped hanging loop, bolt, nut, etc.
Poles/towers with span of less than 100m, and line angle of less than 15°
Grip strengthis greater than 10%-20% of the rated tensile strength of the optical cable.
Installation easyand aging resistance.
Packing with carton box or wooden pallet.
Specification table:
Production Name | Code | Dia. of cable(mm) | Span(m) |
Tangent Clamp for ADSS | CW-TCAD-010 1110 | 9.0-11.1 | 100 |
CW-TCAD-010 1330 | 11.2-13.3 | 100 | |
CW-TCAD-010 1550 | 13.4-15.5 | 100 |
