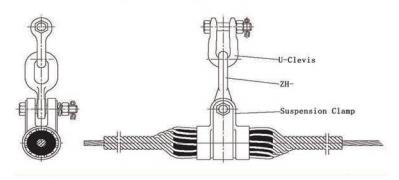

Preformed suspension clamps for ADSS cable are used for the suspension and support connection of optical cables on linear poles and towers. Used well for protection of the optical cable, without concentrated stress. And avoids the abnormal situation of the optical cable having an excessively small bending radius and stress concentration.
The gripping force of the clamp is greater than 10%-20% of the rated tensile strength of the optical cable. The installation is convenient. Has excellent fatigue resistance, and plays an auxiliary shock absorption role for the ADSS optical cable.
Features:
Materials are metal and rubber, aluminium alloy wire.
Includes: inner armor rods, outer armor rods, rubber clamp piece, cover shell, right-angle hanging loop, U-shaped hanging loop, bolt, nut, gasket etc.
Poles/towers with span of less than 400m, and line angle between 15°-18°.
Higher supporting capability of dynamic stress, corner angle of less than or equal to 25°in straight lines. The angle of single-side.
Installation easyand aging resistance.
Packing with carton box or wooden pallet.
Specification table:
Production Name | Code | Dia. of cable(mm) | Length of Rods(mm) | Weight(kg) | Span(m) |
Singlelayers Preformed Suspension clamp for ADSS cable | CW-SSCA-030 0960 | 9.0-9.6 | 1040 | 0.38 | 200-300 |
CW-SSCA-030 1010 | 9.7-10.1 | 1040 | 0.4 | 200-300 | |
CW-SSCA-030 1060 | 10.2-10.6 | 1040 | 0.41 | 200-300 | |
CW-SSCA-030 1110 | 10.7-11.1 | 1040 | 0.44 | 200-300 | |
CW-SSCA-030 1160 | 11.2-11.6 | 1060 | 0.45 | 200-300 | |
CW-SSCA-030 1200 | 11.7-12.0 | 1080 | 0.95 | 200-300 | |
CW-SSCA-030 1270 | 12.1-12.7 | 1115 | 0.96 | 200-300 | |
CW-SSCA-030 1290 | 12.8-12.9 | 1145 | 1.08 | 200-300 | |
CW-SSCA-030 1360 | 13.0-13.6 | 1180 | 1.15 | 200-300 | |
CW-SSCA-030 1410 | 13.7-14.1 | 1210 | 1.15 | 200-300 | |
CW-SSCA-030 1430 | 14.2-14.3 | 1230 | 1.27 | 200-300 | |
CW-SSCA-030 1450 | 14.4-14.5 | 1260 | 1.32 | 200-300 | |
CW-SSCA030 1510 | 14.6-15.1 | 1270 | 1.37 | 200-300 | |
CW-SSCA-040 1200 | 11.7-12.0 | 1200 | 1.07 | 300-400 | |
CW-SSCA-040 1270 | 12.1-12.7 | 1240 | 1.15 | 300-400 | |
CW-SSCA-040 1290 | 12.8-12.9 | 1270 | 1.2 | 300-400 | |
CW-SSCA-040 1360 | 13.0-13.6 | 1305 | 1.28 | 300-400 | |
CW-SSCA-040 1410 | 13.7-14.1 | 1345 | 1.29 | 300-400 | |
CW-SSCA-040 1430 | 14.2-14.3 | 1370 | 1.43 | 300-400 | |
CW-SSCA-040 1450 | 14.4-14.5 | 1380 | 1.46 | 300-400 | |
CW-SSCA-040 1510 | 14.6-15.1 | 1410 | 1.53 | 300-400 |
Preformed suspension clamps for ADSS cable are used for the suspension and support connection of optical cables on linear poles and towers. Used well for protection of the optical cable, without concentrated stress. And avoids the abnormal situation of the optical cable having an excessively small bending radius and stress concentration.
The gripping force of the clamp is greater than 10%-20% of the rated tensile strength of the optical cable. The installation is convenient. Has excellent fatigue resistance, and plays an auxiliary shock absorption role for the ADSS optical cable.
Features:
Materials are metal and rubber, aluminium alloy wire.
Includes: inner armor rods, outer armor rods, rubber clamp piece, cover shell, right-angle hanging loop, U-shaped hanging loop, bolt, nut, gasket etc.
Poles/towers with span of less than 400m, and line angle between 15°-18°.
Higher supporting capability of dynamic stress, corner angle of less than or equal to 25°in straight lines. The angle of single-side.
Installation easyand aging resistance.
Packing with carton box or wooden pallet.
Specification table:
Production Name | Code | Dia. of cable(mm) | Length of Rods(mm) | Weight(kg) | Span(m) |
Singlelayers Preformed Suspension clamp for ADSS cable | CW-SSCA-030 0960 | 9.0-9.6 | 1040 | 0.38 | 200-300 |
CW-SSCA-030 1010 | 9.7-10.1 | 1040 | 0.4 | 200-300 | |
CW-SSCA-030 1060 | 10.2-10.6 | 1040 | 0.41 | 200-300 | |
CW-SSCA-030 1110 | 10.7-11.1 | 1040 | 0.44 | 200-300 | |
CW-SSCA-030 1160 | 11.2-11.6 | 1060 | 0.45 | 200-300 | |
CW-SSCA-030 1200 | 11.7-12.0 | 1080 | 0.95 | 200-300 | |
CW-SSCA-030 1270 | 12.1-12.7 | 1115 | 0.96 | 200-300 | |
CW-SSCA-030 1290 | 12.8-12.9 | 1145 | 1.08 | 200-300 | |
CW-SSCA-030 1360 | 13.0-13.6 | 1180 | 1.15 | 200-300 | |
CW-SSCA-030 1410 | 13.7-14.1 | 1210 | 1.15 | 200-300 | |
CW-SSCA-030 1430 | 14.2-14.3 | 1230 | 1.27 | 200-300 | |
CW-SSCA-030 1450 | 14.4-14.5 | 1260 | 1.32 | 200-300 | |
CW-SSCA030 1510 | 14.6-15.1 | 1270 | 1.37 | 200-300 | |
CW-SSCA-040 1200 | 11.7-12.0 | 1200 | 1.07 | 300-400 | |
CW-SSCA-040 1270 | 12.1-12.7 | 1240 | 1.15 | 300-400 | |
CW-SSCA-040 1290 | 12.8-12.9 | 1270 | 1.2 | 300-400 | |
CW-SSCA-040 1360 | 13.0-13.6 | 1305 | 1.28 | 300-400 | |
CW-SSCA-040 1410 | 13.7-14.1 | 1345 | 1.29 | 300-400 | |
CW-SSCA-040 1430 | 14.2-14.3 | 1370 | 1.43 | 300-400 | |
CW-SSCA-040 1450 | 14.4-14.5 | 1380 | 1.46 | 300-400 | |
CW-SSCA-040 1510 | 14.6-15.1 | 1410 | 1.53 | 300-400 |
