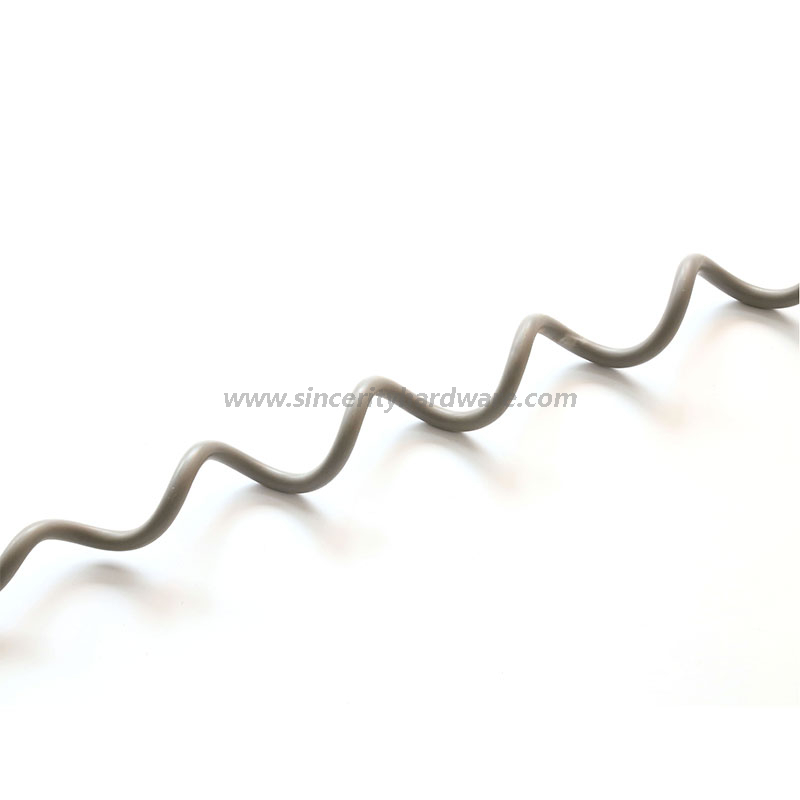

The spiral vibration dampers is made of high-strength, high-elasticity PVC material, which is resistant to high and low temperatures, waterproof, anti-aging, anti-ultraviolet radiation and anti-chemical corrosion. Used for ADSS and OPGW heavy ice areas.
It eliminates or reduces the vibrations that come from the effect of laminar flow wind, and
prevents damage of the hardware fittings and the cables.
Span（m） | Number/Span |
<100 | 0 |
100-250 | 2 |
250-400 | 4 |
400-800 | 6 |
800-1000 | 8 |
Code | Dia. Cable(mm) | Clamp L (mm) | Total Length(mm) | Weight(kg) |
CW-FL 1170 130 | 8.30-11.70 | 250 | 1300 | 0.28 |
CW-FL 1430 135 | 11.71-14.30 | 250 | 1350 | 0.3 |
CW-FL 1930 167 | 14.31-19.30 | 330 | 1670 | 0.66 |
