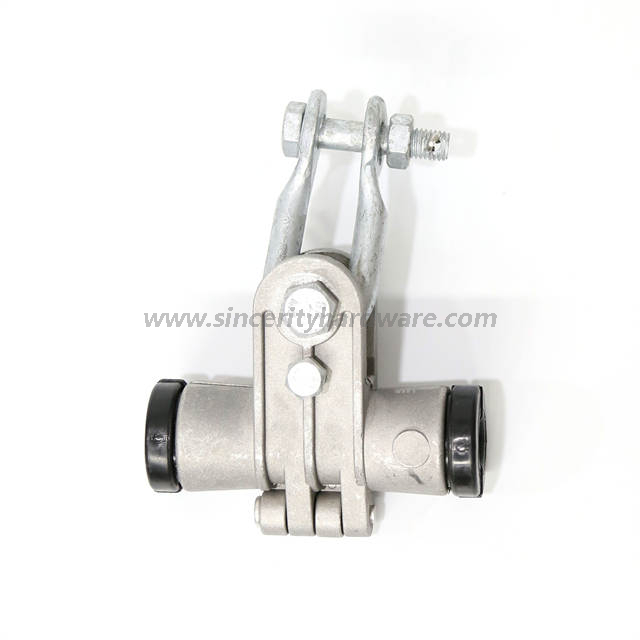

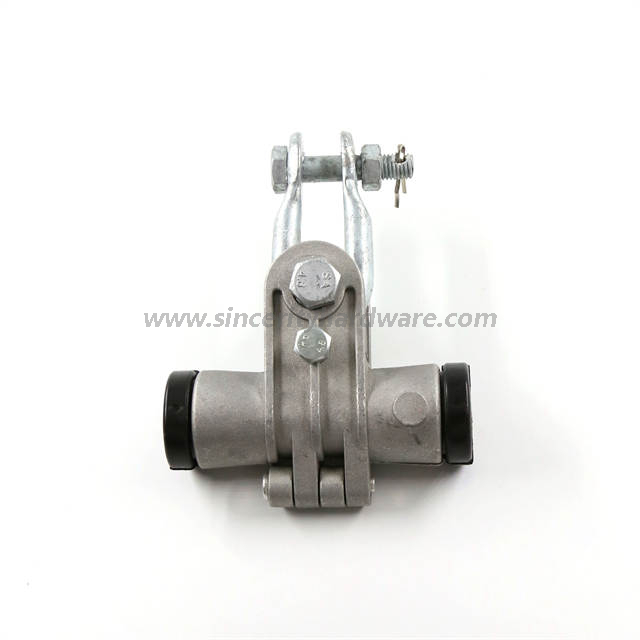

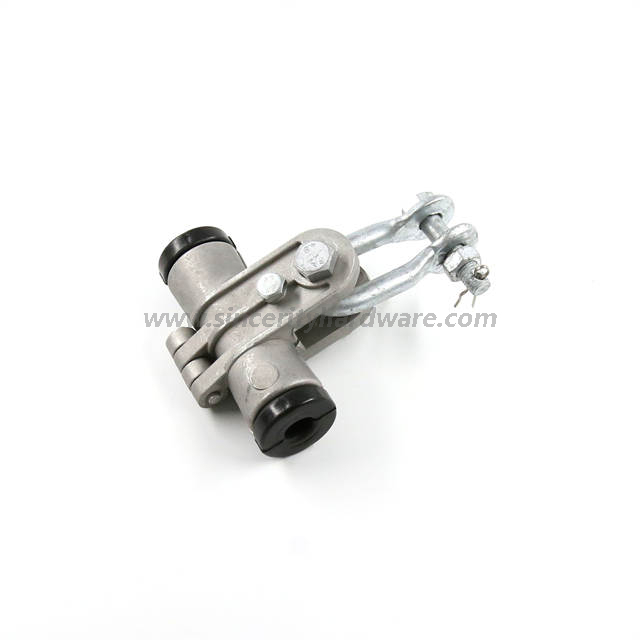

Preformed suspension clamps for OPGW cable are used for the suspension and support connection of optical cables on linear poles and towers. Used well for protection of the optical cable, without concentrated stress. And avoids the abnormal situation of the optical cable having an excessively small bending radius and stress concentration.
The gripping force of the clamp is greater than 10%-20% of the rated tensile strength of the optical cable. The installation is convenient. Has excellent fatigue resistance, and plays an auxiliary shock absorption role for the OPGW optical cable.

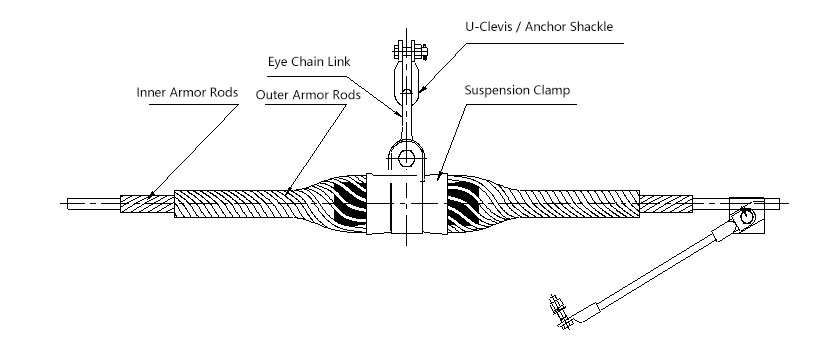

The whole set of suspension clamps includes: inner and outer layers of pre-twisted wires, suspension heads and supporting connecting hardware.
Features:
Materials are metal and rubber, aluminium alloy wire .
Includes: armor rods, rubber clamp piece, cover shell, right-angle hanging loop, U-shaped hanging loop, bolt, nut, gasket etc.
Line angle between 15°-18°
Higher supporting capability of dynamic stress, corner angle of less than or equal to 25°in straight lines. The angle of single-side.
Installation easyand aging resistance.
Packing with carton box or wooden pallet.
Specification table:
Production Name | Code | Available Dia. of Cable(mm) | Length of Outer Rods(mm) | Length of Inner rods(mm) | Weight(kg) | Color |
Suspension Clamp for OPGW cable | CW-GUYSO 0800 | 7.4-8.0 | 1650 | 1100 | 1.27 | Blue |
CW-GUYSO 0880 | 8.1-8.8 | 1650 | 1100 | 1.37 | Green | |
CW-GUYSO 0960 | 8.9-9.6 | 1690 | 1140 | 1.49 | Yellow | |
CW-GUYSO 1010 | 9.7-10.1 | 1690 | 1140 | 1.49 | Black | |
CW-GUYSO 1060 | 10.2-10.6 | 1690 | 1140 | 1.56 | White | |
CW-GUYSO 1110 | 10.7-11.1 | 1720 | 1140 | 1.57 | Red | |
CW-GUYSO 1160 | 11.2-11.6 | 1760 | 1180 | 1.72 | Blue | |
CW-GUYSO 1170 | 11.7-11.7 | 1840 | 1240 | 1.88 | Green | |
CW-GUYSO 1200 | 11.8-12.0 | 1840 | 1240 | 1.88 | Yellow | |
CW-GUYSO 1270 | 12.1-12.7 | 1860 | 1240 | 1.89 | Black | |
CW-GUYSO 1290 | 12.8-12.9 | 1960 | 1240 | 2.12 | White | |
CW-GUYSO 1360 | 13.0-13.6 | 1960 | 1320 | 2.2 | Red | |
CW-GUYSO 1410 | 13.7-14.1 | 2000 | 1320 | 2.22 | Blue | |
CW-GUYSO 1430 | 14.2-14.3 | 2000 | 1320 | 2.22 | Green | |
CW-GUYSO 1450 | 14.4-14.5 | 2120 | 1440 | 2.61 | Yellow | |
CW-GUYSO 1510 | 14.6-15.1 | 2120 | 1440 | 2.62 | Black | |
CW-GUYSO 1580 | 15.2-15.8 | 2180 | 1440 | 2.65 | White | |
CW-GUYSO 1600 | 15.9-16.0 | 2400 | 1620 | 3.05 | Red | |
CW-GUYSO 1690 | 16.1-16.9 | 2400 | 1620 | 3.05 | Blue | |
CW-GUYSO 1730 | 17.0-17.3 | 2400 | 1620 | 3.2 | Green | |
CW-GUYSO 1800 | 17.4-18.0 | 2400 | 1620 | 3.3 | Yellow | |
CW-GUYSO 1840 | 18.1-18.4 | 2400 | 1620 | 3.3 | Black | |
CW-GUYSO 1880 | 18.5-18.8 | 2400 | 1620 | 3.55 | White | |
CW-GUYSO 1890 | 18.9-18.9 | 2400 | 1620 | 3.55 | Red | |
CW-GUYSO 1990 | 19.0-19.9 | 2400 | 1620 | 3.55 | Blue |
Preformed suspension clamps for OPGW cable are used for the suspension and support connection of optical cables on linear poles and towers. Used well for protection of the optical cable, without concentrated stress. And avoids the abnormal situation of the optical cable having an excessively small bending radius and stress concentration.
The gripping force of the clamp is greater than 10%-20% of the rated tensile strength of the optical cable. The installation is convenient. Has excellent fatigue resistance, and plays an auxiliary shock absorption role for the OPGW optical cable.
The whole set of suspension clamps includes: inner and outer layers of pre-twisted wires, suspension heads and supporting connecting hardware.
Features:
Materials are metal and rubber, aluminium alloy wire .
Includes: armor rods, rubber clamp piece, cover shell, right-angle hanging loop, U-shaped hanging loop, bolt, nut, gasket etc.
Line angle between 15°-18°
Higher supporting capability of dynamic stress, corner angle of less than or equal to 25°in straight lines. The angle of single-side.
Installation easyand aging resistance.
Packing with carton box or wooden pallet.
Specification table:
Production Name | Code | Available Dia. of Cable(mm) | Length of Outer Rods(mm) | Length of Inner rods(mm) | Weight(kg) | Color |
Suspension Clamp for OPGW cable | CW-GUYSO 0800 | 7.4-8.0 | 1650 | 1100 | 1.27 | Blue |
CW-GUYSO 0880 | 8.1-8.8 | 1650 | 1100 | 1.37 | Green | |
CW-GUYSO 0960 | 8.9-9.6 | 1690 | 1140 | 1.49 | Yellow | |
CW-GUYSO 1010 | 9.7-10.1 | 1690 | 1140 | 1.49 | Black | |
CW-GUYSO 1060 | 10.2-10.6 | 1690 | 1140 | 1.56 | White | |
CW-GUYSO 1110 | 10.7-11.1 | 1720 | 1140 | 1.57 | Red | |
CW-GUYSO 1160 | 11.2-11.6 | 1760 | 1180 | 1.72 | Blue | |
CW-GUYSO 1170 | 11.7-11.7 | 1840 | 1240 | 1.88 | Green | |
CW-GUYSO 1200 | 11.8-12.0 | 1840 | 1240 | 1.88 | Yellow | |
CW-GUYSO 1270 | 12.1-12.7 | 1860 | 1240 | 1.89 | Black | |
CW-GUYSO 1290 | 12.8-12.9 | 1960 | 1240 | 2.12 | White | |
CW-GUYSO 1360 | 13.0-13.6 | 1960 | 1320 | 2.2 | Red | |
CW-GUYSO 1410 | 13.7-14.1 | 2000 | 1320 | 2.22 | Blue | |
CW-GUYSO 1430 | 14.2-14.3 | 2000 | 1320 | 2.22 | Green | |
CW-GUYSO 1450 | 14.4-14.5 | 2120 | 1440 | 2.61 | Yellow | |
CW-GUYSO 1510 | 14.6-15.1 | 2120 | 1440 | 2.62 | Black | |
CW-GUYSO 1580 | 15.2-15.8 | 2180 | 1440 | 2.65 | White | |
CW-GUYSO 1600 | 15.9-16.0 | 2400 | 1620 | 3.05 | Red | |
CW-GUYSO 1690 | 16.1-16.9 | 2400 | 1620 | 3.05 | Blue | |
CW-GUYSO 1730 | 17.0-17.3 | 2400 | 1620 | 3.2 | Green | |
CW-GUYSO 1800 | 17.4-18.0 | 2400 | 1620 | 3.3 | Yellow | |
CW-GUYSO 1840 | 18.1-18.4 | 2400 | 1620 | 3.3 | Black | |
CW-GUYSO 1880 | 18.5-18.8 | 2400 | 1620 | 3.55 | White | |
CW-GUYSO 1890 | 18.9-18.9 | 2400 | 1620 | 3.55 | Red | |
CW-GUYSO 1990 | 19.0-19.9 | 2400 | 1620 | 3.55 | Blue |
