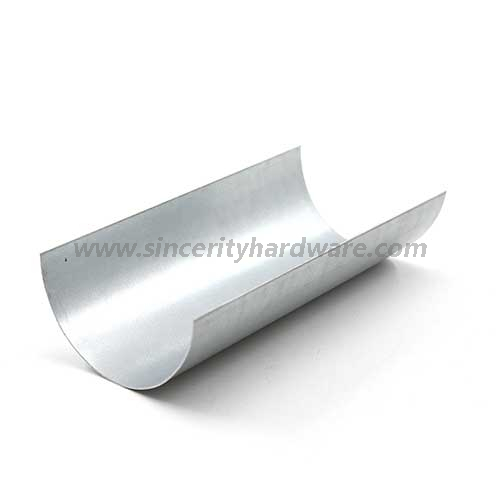

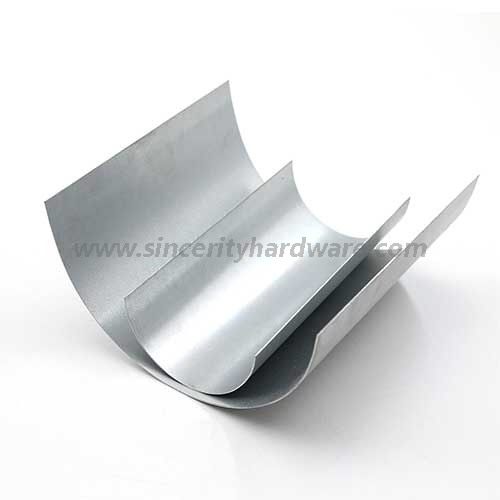

1. Galvanized insulation saddles are used to protect piping insulation from compressing at pipe hanger locations.
2. The saddles size range is from 2” to 12”, and other custom sizes.
3. The material is galvanized carbon steel, providing superior rust proof protection.
4. No rigs or flares to get hung up on hangers. Flush to the pipe insulation to prevent mold and mildew.
5. The saddles are individually marked, with insulation outside diameter to ensure proper fit.
Part No. | Saddle Size | Length | Gauge |
CWGIS-01 | 2” | 6”/12” | 22 |
CWGIS-02 | 2 1/2” | 6”/12” | 22 |
CWGIS-03 | 3” | 6”/12” | 22 |
CWGIS-04 | 3 1/2” | 6”/12” | 22 |
CWGIS-05 | 4” | 6”/12” | 22 |
CWGIS-06 | 4 1/2” | 6”/12” | 22 |
CWGIS-07 | 5” | 6”/12” | 22 |
CWGIS-08 | 5 1/2” | 6”/12” | 22 |
CWGIS-09 | 6” | 6”/12” | 20 |
CWGIS-10 | 6 1/2” | 6”/12” | 20 |
CWGIS-11 | 7” | 6”/12” | 20 |
CWGIS-12 | 7 1/2” | 6”/12” | 20 |
CWGIS-13 | 8” | 6”/12” | 20 |
CWGIS-14 | 8 1/2” | 6”/12” | 20 |
CWGIS-15 | 9” | 6”/12” | 20 |
CWGIS-16 | 9 1/2” | 6”/12” | 20 |
CWGIS-17 | 10” | 6”/12” | 20 |
CWGIS-18 | 10 1/2” | 6”/12” | 20 |
CWGIS-19 | 11” | 6”/12” | 20 |
CWGIS-20 | 11 1/2” | 6”/12” | 20 |
CWGIS-21 | 12” | 6”/12” | 20 |
