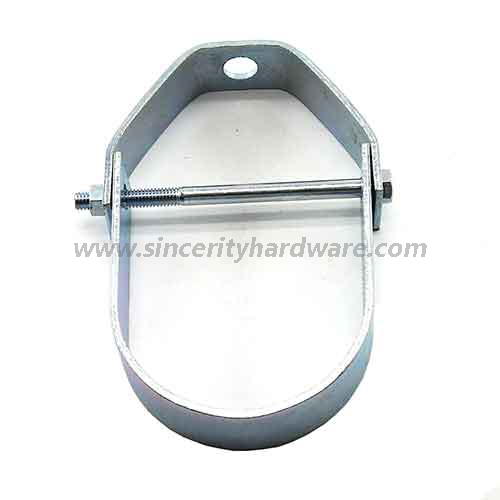

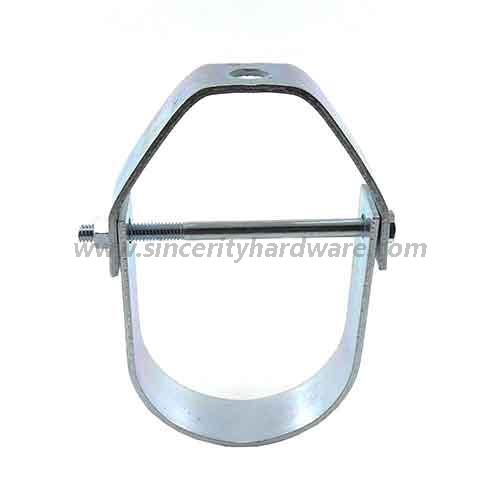

1. Clevis hangers are mainly for vertical pipe support, firmly attach stationary pipe lines to overhead structure.
2. The clevis hanger size range is from 3/8” to 8”.
3. The material is galvanized carbon steel or stainless steel, with standard thickness.
4. OEM manufacturer and wholesaler. The MOQ is 3000 pcs each size.
5. Comply to UL/FM standards. We can also turn your design into reality.
Features and Benefits
· Designed for chilled water pipe work and fire fighting systems
· Design permits vertical adjustment of pipe after installation
· Hanger load nut above clevis must be tightened securely to ensure proper hanger performance
· Material: steel
Part No. | Pipe Size | A (mm) | B (mm) | C (mm) | D (mm) |
CWCH-01 | 1/2” | 10 | 71 | 60 | 6 |
CWCH-02 | 3/4” | 10 | 76 | 62 | 6 |
CWCH-03 | 1” | 10 | 84 | 67 | 6 |
CWCH-04 | 1 1/4” | 10 | 93 | 71 | 6 |
CWCH-05 | 1 1/2” | 10 | 101 | 76 | 6 |
CWCH-06 | 2” | 10 | 112 | 81 | 6 |
CWCH-07 | 2 1/2” | 13 | 136 | 99 | 10 |
CWCH-08 | 3” | 13 | 152 | 107 | 10 |
CWCH-09 | 3 1/2” | 13 | 168 | 116 | 10 |
CWCH-10 | 4” | 17 | 190 | 132 | 10 |
CWCH-11 | 5” | 17 | 225 | 153 | 13 |
CWCH-12 | 6” | 20 | 254 | 169 | 13 |
CWCH-13 | 8” | 20 | 324 | 213 | 16 |
