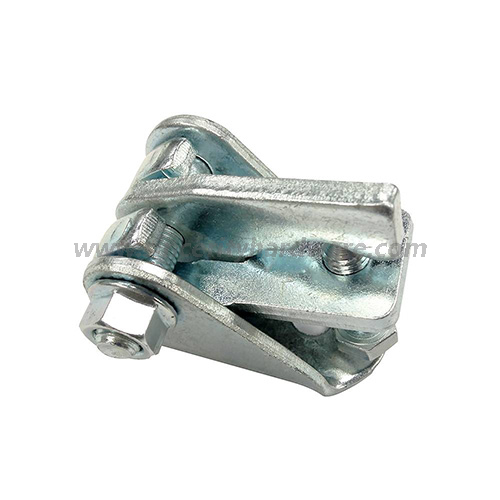

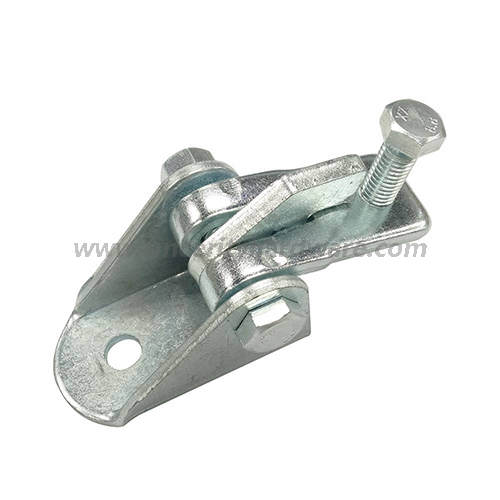

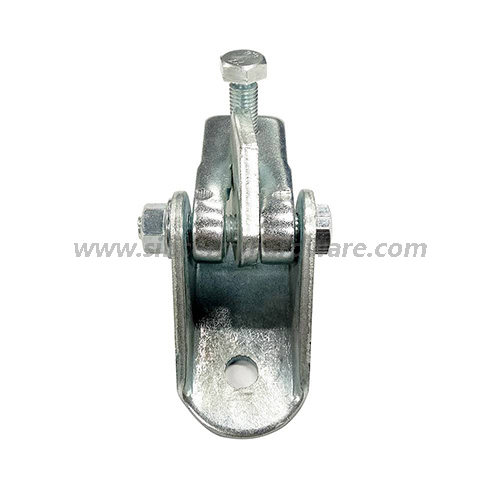

1. Universal swivel sway brace attachment is used as an anchor, fastening the bracing pipe to the wall or steel beam. The attachment fits 1”-2” pipes, 12 gauge channel, and all structural steel up to 1/4” thickness.
2. The universal attachment is a standard product with four mounting sizes.
3. The nut is locknut and anti-theft nut. The material thickness is 5mm at least, with very high load capacity.
4. The specification and quality comply to the UL/FM standards.
5. The surface is galvanized, comply to ASTM standards.
Part No. | Mounting Size | A (mm) | B (mm) |
CWSSBA-01 | 3/8” | 133 | 47 |
CWSSBA-02 | 1/2” | 133 | 47 |
CWSSBA-03 | 5/8” | 133 | 47 |
CWSSBA-04 | 3/4” | 133 | 47 |
