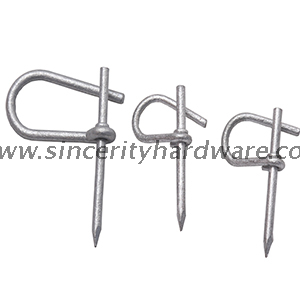

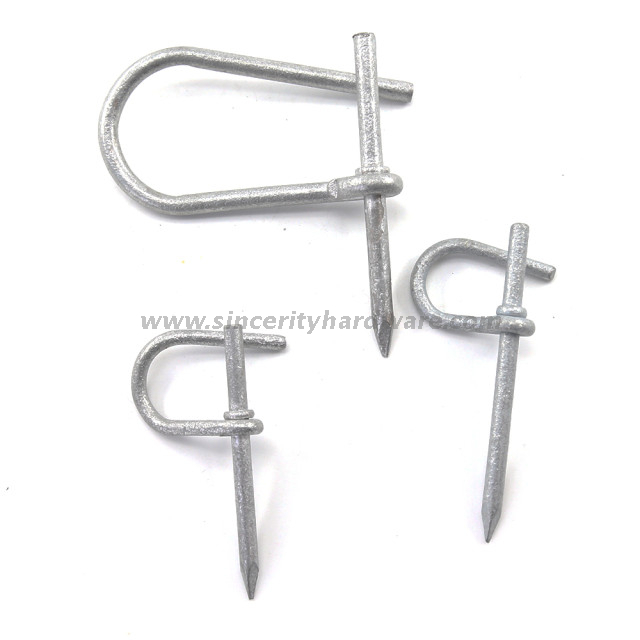

Drive Ring
Material: Constructed of corrosion-resistant galvanized steel to promote durability in both wet and dry environments
Application:
Drive rings securely hold and route electrical and communications cabling on interior wood framing, utility poles or exterior walls Open-ended loop allows for easy cable removal and insertion, making additions and changes to the routing of your cables easier
Available in four sizes to accommodate a variety of different sized applications
| Part No. | Description | Material | Pin Length | Pin Dia |
| SH-DR01 | 1/2'' Drive Ring | AISI 1016 | 2-1/8'' | 0.12'' |
| SH-DR02 | 5/8'' Drive Ring | AISI 1016 | 2-3/8'' | 0.169'' |
| SH-DR03 | 7/8''Drive Ring | AISI 1016 | 2-5/8'' | 0.169'' |
| SH-DR04 | 1-1/4''Drive Ring | AISI 1016 | 2-1/8'' | 0.12'' |
| SH-DR05 | 5/8'' L Drive Ring | AISI 1016 | 2-13/16'' | 0.169'' |
| SH-DR06 | 7/8'' L Drive Ring | AISI 1016 | 3'' | 0.169'' |
| SH-DR07 | 1-1/4'' L Drive Ring | AISI 1016 | 3-3/8'' | 0.203'' |
Drive Ring
Material: Constructed of corrosion-resistant galvanized steel to promote durability in both wet and dry environments
Application:
Drive rings securely hold and route electrical and communications cabling on interior wood framing, utility poles or exterior walls Open-ended loop allows for easy cable removal and insertion, making additions and changes to the routing of your cables easier
Available in four sizes to accommodate a variety of different sized applications
| Part No. | Description | Material | Pin Length | Pin Dia |
| SH-DR01 | 1/2'' Drive Ring | AISI 1016 | 2-1/8'' | 0.12'' |
| SH-DR02 | 5/8'' Drive Ring | AISI 1016 | 2-3/8'' | 0.169'' |
| SH-DR03 | 7/8''Drive Ring | AISI 1016 | 2-5/8'' | 0.169'' |
| SH-DR04 | 1-1/4''Drive Ring | AISI 1016 | 2-1/8'' | 0.12'' |
| SH-DR05 | 5/8'' L Drive Ring | AISI 1016 | 2-13/16'' | 0.169'' |
| SH-DR06 | 7/8'' L Drive Ring | AISI 1016 | 3'' | 0.169'' |
| SH-DR07 | 1-1/4'' L Drive Ring | AISI 1016 | 3-3/8'' | 0.203'' |
