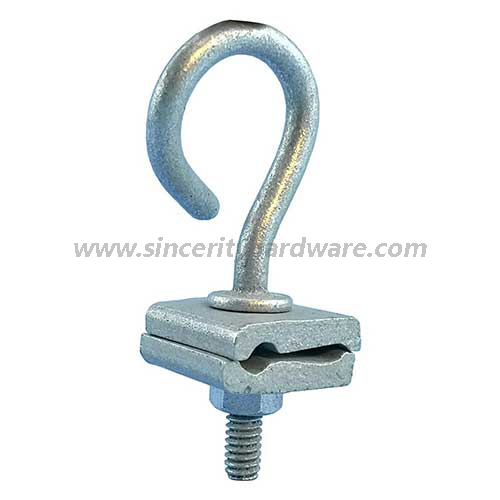

E Cable Lashing Clamp is developed to secure a terminating lashing wire to the strand, either at an interruption in continuity or at the end of the lashing wire coil.
E Lashing Wire Clamp is omprised of a one-piece jaw, two washers, two nuts, and a square shank stud.

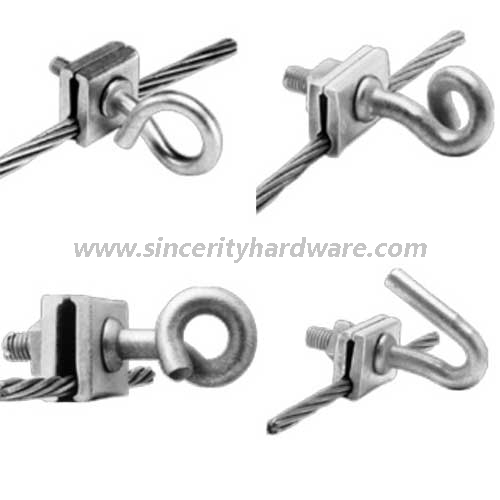

Designed Used in aerial construction to secure terminating lashing wire or ground wire to a strand.
Carbon steel, stainless steel, or other special materials are available.
Tensile strength of the jaws exceeds 50,000 PSI.
Terminal ends of stud are staked to prevent disassembly during shipping and installation.
Attaches to strand ranging in size from 1/4″(6.6M) to 7/16″(16M).
The jaws are rolled and stamped from annealed 1018 Steel.
The stud of the D Lashing Wire Clamp is formed from Grade 5 Steel.
All components of E Lashing Wire Clamps are mechanically galvanized to meet ASTM Specification B695, Class 50, Type 1.
As an OEM expert, HardwareManufactory can accept OEM production stainless steel or carbon steel cable lashing clamp for hardware fitting. Just send us the drawing or picture and place the order!
Terminating correctly is the utmost importance, as improper wire termination renders your aerial plant dangerous. Follow this step by step procedure to accurately secure lashing wires.
Place strand between clamp plates as shown.
Secure the strand in the clamp jaws by tightening nut “A” to 120 IN-LBS torque (to approximate required torque, tighten finger tight. Then wrench tighten one full turn.).
Warp lashing wire twice terminating in lashing clamp.
Darw wire over top of strand and place between the collar and the first washer. Wrap only 1/2 turn around stud and tighten nut “B” securely.
Tuck end of lashing wire into clamp. Cut excess. End of lashing wire must not protrude from clamp.
| PART NO. | DESCRIPTION | MATERIAL | STUD |
|---|---|---|---|
| CW-ELC | E Cable Lashing Clamp | 1018 Steel | GRADE 5 STEEL |
