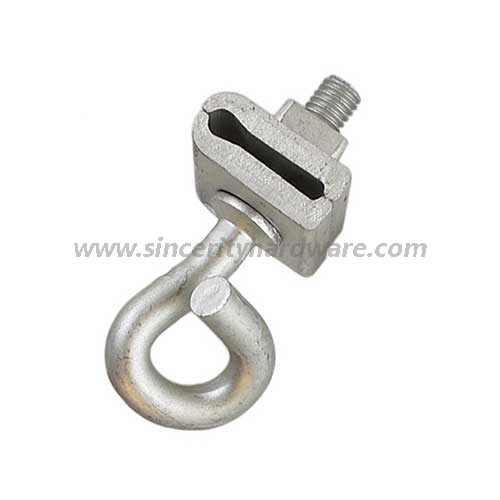

E Span Clamp is used in drop cable installations as an attachment to the strand for accepting the bail of Drop Wire Clamp. The “E” is also used as a pull off to hold cable away from obstacles in the line of aerial construction. This application eliminates the use of tree guards.
Tensile strength of jaws and bolt exceeds 75,000 P.S.I.
Clamping range is from 1/4″(6.6M) to 7/16″(16M).
Clamp is comprised of a pigtail bolt, two jaws, and a square nut.
Bolt and nut are formed from Grade 2 Steel.
Jaws are rolled and stamped from 1018 tempered Steel.
Bolt and nut are hot dip galvanized to meet ASTM Specification A153.
Jaws are mechanically galvanized to meet ASTM Specification B695.
Position clamping polates on top of messenger strand. Here you can tighten clamping nut.
Insert drop wire, drop wire clamp or wire grip into the hook.
Pull drop wire against the hook toward the area where service is being installed.
| PART NO. | DESCRIPTION | MATERIAL | STUD |
|---|---|---|---|
| CW-ESC | E Span Clamp | 6063 Aluminum | Grade 2 Steel |
