CW-MDSC
GK
Availability: | |
---|---|
Quantity: | |

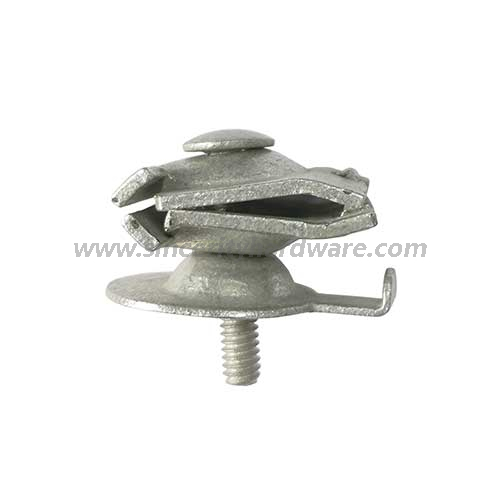

Multi-drop Span Clamp used to attach multiple drop cables at one location using drop wire clamps or direct attacment. Bolt staked to prevent loss of nut during installation. Multi-drop span clamp accepts 1/4″ strand.
Parts No. | Description | Material | Strand size |
CW-MDSC | Multi-drop span clamp | Steel galvanized | 1/4″ |
Main features:
Used as an attachment to strand for accepting the bail of drop wire clamps or for wrapping the support wire of drop cable.
Jaws provide a tensile strength that exceeds 50,000 P.S.I..
The clamp is comprised of two steel jaws, a retaining washer, carriage bolt, hex nut, and lock washer.
The jaws are stamped from AISI 1018 tempered Steel.
The retaining washer is formed from 1018 Steel.
The bolt and nut are formed from Grade 2 Steel.
All components are mechanically galvanized to meet ASTM Specification B695.
Attaches to strand ranging in size from 1/4″ (6.6M) to 7/16″ (16M).
Multi-drop Span Clamp used to attach multiple drop cables at one location using drop wire clamps or direct attacment. Bolt staked to prevent loss of nut during installation. Multi-drop span clamp accepts 1/4″ strand.
Parts No. | Description | Material | Strand size |
CW-MDSC | Multi-drop span clamp | Steel galvanized | 1/4″ |
Main features:
Used as an attachment to strand for accepting the bail of drop wire clamps or for wrapping the support wire of drop cable.
Jaws provide a tensile strength that exceeds 50,000 P.S.I..
The clamp is comprised of two steel jaws, a retaining washer, carriage bolt, hex nut, and lock washer.
The jaws are stamped from AISI 1018 tempered Steel.
The retaining washer is formed from 1018 Steel.
The bolt and nut are formed from Grade 2 Steel.
All components are mechanically galvanized to meet ASTM Specification B695.
Attaches to strand ranging in size from 1/4″ (6.6M) to 7/16″ (16M).
