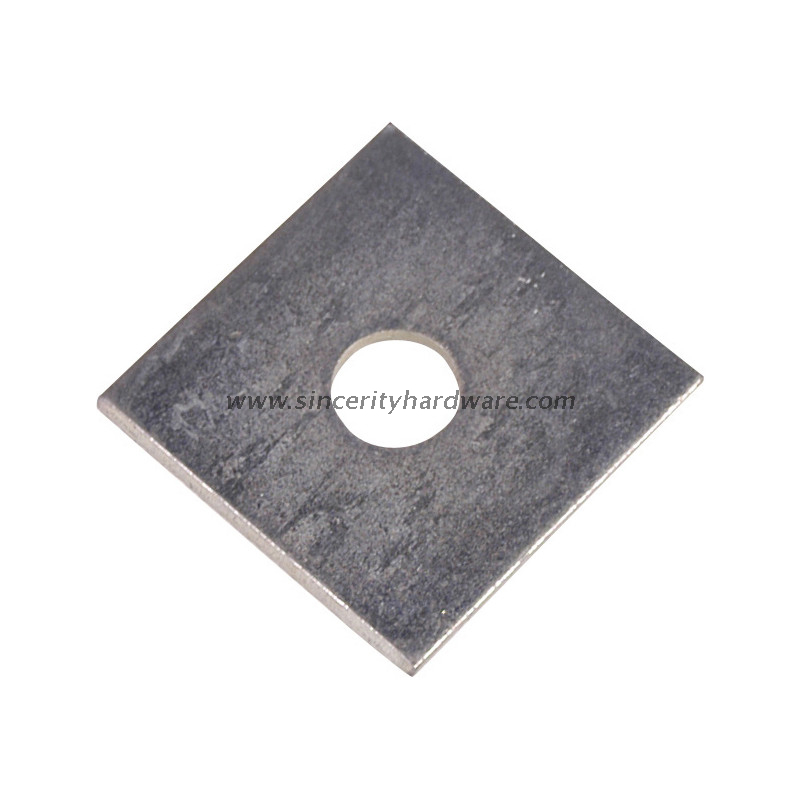

Square Washer
Square Washers are a range of larger sized washers that have a distinctive square outside and a round hole in the middle.
Material: AISI 1018 Steel
Application:
Used mainly in the building and construction industry where timber is held together, the washer is used to spread the tightening loads over a greater area.
| Part No. | Description | For Bolt Size | Material |
| SH-SW01 | 1/8''X2''Square Washer | 1/2'' | AISI 1018 |
| SH-SW02 | 1/8''X2''Square Washer | 5/8'' | AISI 1018 |
| SH-SW03 | 3/16'' X 2-1/4''Square Washer | 5/8'' | AISI 1018 |
| SH-SW04 | 1/4'' X3-1/2''Square Washer | 5/8'' | AISI 1018 |
| SH-SW05 | 3/16'' X 2-1/4''Square Washer | 3/4'' | AISI 1018 |
| SH-SW06 | 1/4''X3'' Square Washer | 3/4'' | AISI 1018 |
| SH-SW07 | 3/8''X3-1/2''Square Washer | 3/4'' | AISI 1018 |
| SH-SW08 | 3/8''X3-1/2''Square Washer | 7/8'' | AISI 1018 |
| SH-SW09 | 3/16''X 4''Square Washer | 3/4'' | AISI 1018 |
| SH-SW10 | 5/16''X 3''Square Washer | 7/8'' | AISI 1018 |
| SH-SW11 | 1/4''X 4''Square Washer | 7/8'' | AISI 1018 |
| SH-SW12 | 1/2''X4''Square Washer | 1'' | AISI 1018 |
| SH-SW13 | 3/8''X 6''Square Washer | 1'' | AISI 1018 |
