SH-SWS
SH
| Quantity: | |
|---|---|

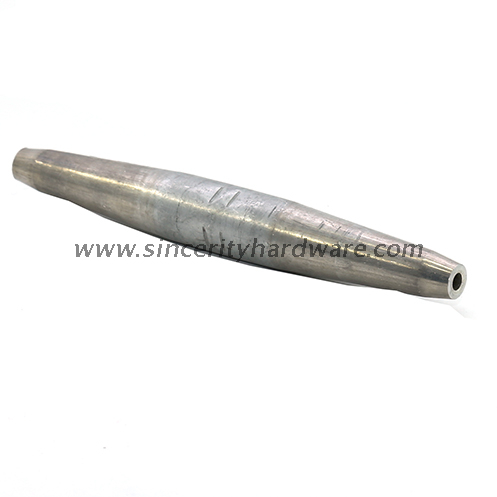

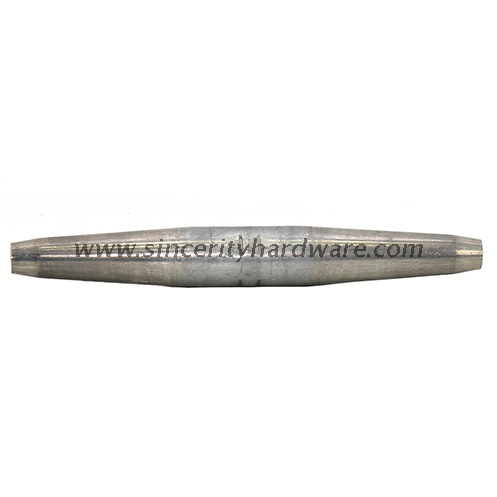

Surpport Wire Splice
Surpport wire splice minimum holding strength is 90% of the rated breaking strength of the support wire.
Usage: Used to splice the support wire of Figure 8 Drop Cable.
| Part No. | Description | Cable Type | Strand size |
| SH-SWS01 | Surpport wire splice Φ3/8'' x 2-15/16'' | figure 8 cable | 0.062''-0.1'' |
| SH-SWS02 | Surpport wire splice Φ7/16'' x 2-15/16'' | 0.091''-0.114'' | |
| SH-SWS03 | Surpport wire splice Φ9/16'' x 4-1/16'' | 0.12''-0.135'' | |
| SH-SWS04 | Surpport wire splice Φ1'' x 9'' | 0.14''-0.215'' |
